Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 103756

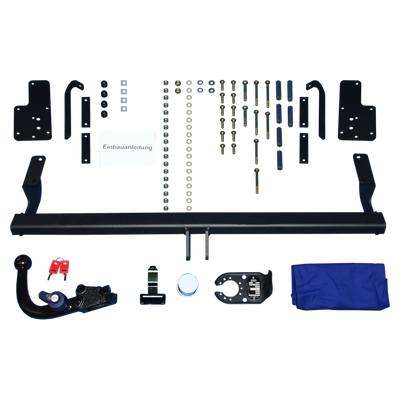

Brink Towbar detachable Towball inserted slanted from below - Fiat, Suzuki

Brink
  • Brink Towbar detachable Towball inserted slanted from below
Art. No.: 103756

Brink Towbar detachable Towball inserted slanted from below - Fiat, Suzuki

  • Towing capacity: 1200 kg
  • Vertical load: 50 kg
print Suggest a price
Brink
You save 14%
RRP € 487.00 € 417.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Brink
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted slanted from below
Assembly time 1
3,0 h
Vertical load 2
50 kg
Towing capacity 3
1.200 kg
D-value
7,10 kN
Certification
E11*94/20*6038*00
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
21,20 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

This detachable towbar produced by Brink fits your vehicle . This patented and user-friendly detachable fully automatic system meets today's modern demands. The Brink BMA towbar is the advanced version of the Brink B2 system. Optimized operation as well as a further developed locking mechanism and even better workmanship are the hallmarks of this towing device.

This anti-theft towbar comes with an integrated lock. This towbar has a towing capacity of up to 1200 kg and a vertical load of 50 kg. Brink indicates a fatigue strength of 7.1 kN.

A small cut in the visible area of the bumper is needed to fit this towbar. A cutting template or cutting dimensions can be found in the installation instructions.

This towbar is designed to carry bicycle carriers. You can find offers for this in the "Bicycle carrier" category. We deliver this original part from top class manufacturer Brink at the best price.

The ordered article includes detailed assembly instructions from Brink. This towbar has a coating with special paint to protect it against corrosion and environmental degradation.

Carefully read the instructions and specific indications of the vehicle manufacturer when fitting the towbar. Such information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

Manufacturer information

Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

Address
  • Brink Towing Systems B.V.
  • Industrieweg 5
  • 7951 CX Staphorst
  • Overijssel
  • Netherlands
Please select your vehicle here for more information!

To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

  • Fiat SEDICI (189_)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Fiat SEDICI (189_) 1.6 16V
      Power
      79 kW / 107 HP
      Year of make
      06.06 - 10.14
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 1.6 16V
      Power
      88 kW / 120 HP
      Year of make
      06.06 - 10.14
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 1.6 16V 4x4
      Power
      79 kW / 107 HP
      Year of make
      06.06 - 10.14
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 1.6 16V 4x4
      Power
      88 kW / 120 HP
      Year of make
      06.06 - 10.14
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 1.9 D Multijet
      Power
      88 kW / 120 HP
      Year of make
      06.06 - 10.11
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 1.9 D Multijet 4x4
      Power
      88 kW / 120 HP
      Year of make
      06.06 - 10.11
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 2.0 D Multijet
      Power
      99 kW / 135 HP
      Year of make
      06.06 - 10.14
      Link
      more info
    • Vehicle model
      Fiat SEDICI (189_) 2.0 D Multijet 4x4
      Power
      99 kW / 135 HP
      Year of make
      06.06 - 10.14
      Link
      more info
  • Suzuki SX4 (EY, GY)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.5 (RW 415)
      Power
      73 kW / 99 HP
      Year of make
      06.06 - 07.10
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.5 VVT (RW415, YA11S)
      Power
      82 kW / 112 HP
      Year of make
      07.10 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.5 VVT 4x4 (RW 415)
      Power
      82 kW / 112 HP
      Year of make
      07.10 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.5 VVTi (YA11S)
      Power
      81 kW / 110 HP
      Year of make
      07.07 - 12.15
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 DDIS (RW416D)
      Power
      66 kW / 90 HP
      Year of make
      04.07 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 LPG
      Power
      79 kW / 107 HP
      Year of make
      06.06 - 12.12
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT
      Power
      81 kW / 110 HP
      Year of make
      12.12 - 12.15
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT
      Power
      82 kW / 112 HP
      Year of make
      11.10 - 12.15
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT (RW416, YA21S)
      Power
      79 kW / 107 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT (RW416, YA21S)
      Power
      88 kW / 120 HP
      Year of make
      07.09 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT 4x4
      Power
      81 kW / 110 HP
      Year of make
      01.12 - 12.15
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT 4x4 (RW416)
      Power
      79 kW / 107 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT 4x4 (RW416)
      Power
      82 kW / 112 HP
      Year of make
      07.09 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.6 VVT 4x4 (RW416)
      Power
      88 kW / 120 HP
      Year of make
      07.09 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.9 DDiS (RW419D)
      Power
      88 kW / 120 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 1.9 DDiS 4x4 (RW419D)
      Power
      88 kW / 120 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 (RW415, RW416, RW420)
      Power
      112 kW / 152 HP
      Year of make
      01.10 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 (RW415, RW416, RW420, YA41S)
      Power
      107 kW / 146 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 16V 4x4 (RW415, RW416, RW420)
      Power
      112 kW / 152 HP
      Year of make
      01.10 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 4x4 (RW415, RW416, RW420, YB41S)
      Power
      107 kW / 146 HP
      Year of make
      06.06 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 DDiS (RW420D)
      Power
      99 kW / 135 HP
      Year of make
      07.09 -
      Link
      more info
    • Vehicle model
      Suzuki SX4 (EY, GY) 2.0 DDiS 4x4 (RW420D)
      Power
      99 kW / 135 HP
      Year of make
      07.09 -
      Link
      more info
