Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 104975

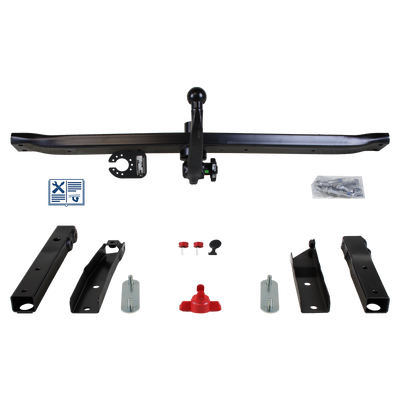

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

Westfalia
  • Westfalia Towbar detachable Towball inserted from below
Art. No.: 104975

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

  • Towing capacity: 1700 kg
  • Vertical load: 75 kg
Please note the special features.
print Suggest a price
Westfalia
€ 642.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • min. blower motor power: 600 W
Additional notes
  • for vehicles with BlueEFFICIENCY or BlueTec technology, please check if the towing capacity is specified in the vehicle documents
Manufacturer
Westfalia
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,5 h
Vertical load 2
75 kg
Towing capacity 3
1.700 kg
D-value
9,10 kN
Certification
E13*94/20*0019*00
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
17,20 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

The detachable bottom-mounted towbar from premium manufacturer Westfalia has been specially developed and produced for your vehicle. Westfalia A40V automatic system, a bottom-mounted towbar system. The A40V is Westfalia's bestseller. The system is attached to your vehicle almost invisibly. Another advantage of this bottom-mounted towbar is the patented locking system and you get 1A Westfalia quality.

This towbar can be secured against theft by an integrated lock. The raw facts: a towing capacity up to 1700 kg and a vertical load of 75 kg. Westfalia submitted a fatigue value of 9.1 kN.

A cut in the lower part of the bumper is required during installation. This cut will not be visible. A cutting template or cutting dimensions can be found in the installation instructions.

Please also visit our "Bicycle carrier" category, as this trailer coupling is suitable for transporting a bicycle carrier. The vehicle manufacturer uses towbars from Westfalia for its original equipment, which stand for good quality at a reasonable price.

Additional fitting instructions are available on the Rameder website, where customers share their experiences to speed up your installation process. The official installation guide is included too. A cathodic electro-dip coating is present. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. Effective corrosion protection and a smooth surface are the result.

Please read the instructions and specifications of the vehicle manufacturer when retrofitting a towbar. Normally such information can be found in your vehicle user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

Manufacturer information

Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

Address
  • Westfalia-Automotive GmbH
  • Am Sandberg 45
  • 33378 Rheda-Wiedenbrück
  • Nordrhein-Westfalen
  • Germany
Please select your vehicle here for more information!

To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

  • Mercedes-Benz C-CLASS (W202)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 180 (202.018)
      Power
      89 kW / 121 HP
      Year of make
      11.94 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 180 (202.018)
      Power
      90 kW / 122 HP
      Year of make
      03.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 (202.020)
      Power
      100 kW / 136 HP
      Year of make
      01.94 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 CDI (202.134)
      Power
      75 kW / 102 HP
      Year of make
      03.98 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 D (202.120)
      Power
      55 kW / 75 HP
      Year of make
      03.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 D (202.122)
      Power
      65 kW / 88 HP
      Year of make
      10.96 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 Kompressor (202.025)
      Power
      132 kW / 180 HP
      Year of make
      10.95 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 200 Kompressor (202.025)
      Power
      141 kW / 192 HP
      Year of make
      11.96 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 220 (202.022)
      Power
      110 kW / 150 HP
      Year of make
      03.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 220 CDI (202.133)
      Power
      92 kW / 125 HP
      Year of make
      09.97 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 220 D (202.021)
      Power
      55 kW / 75 HP
      Year of make
      07.96 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 220 D (202.121)
      Power
      70 kW / 95 HP
      Year of make
      08.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 230 (202.023)
      Power
      110 kW / 150 HP
      Year of make
      06.96 - 06.97
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 230 Kompressor (202.024)
      Power
      142 kW / 193 HP
      Year of make
      10.95 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 240 (202.026)
      Power
      125 kW / 170 HP
      Year of make
      06.97 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 250 D (202.125)
      Power
      83 kW / 113 HP
      Year of make
      05.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 250 Turbo-D (202.128)
      Power
      110 kW / 150 HP
      Year of make
      10.95 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 280 (202.028)
      Power
      142 kW / 193 HP
      Year of make
      05.93 - 05.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS (W202) C 280 (202.029)
      Power
      145 kW / 197 HP
      Year of make
      06.97 - 05.00
      Link
      more info
  • Mercedes-Benz C-CLASS T-Model (S202)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 180 T (202.078)
      Power
      90 kW / 122 HP
      Year of make
      06.96 - 09.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 180 T (202.081)
      Power
      95 kW / 129 HP
      Year of make
      09.00 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 200 T (202.080)
      Power
      100 kW / 136 HP
      Year of make
      06.96 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 200 T CDI (202.194)
      Power
      75 kW / 102 HP
      Year of make
      03.98 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 200 T D (202.180)
      Power
      65 kW / 88 HP
      Year of make
      10.96 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 200 T Kompressor (202.082)
      Power
      141 kW / 192 HP
      Year of make
      11.96 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 200 T Kompressor (202.087)
      Power
      120 kW / 163 HP
      Year of make
      09.00 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 220 T CDI (202.193)
      Power
      92 kW / 125 HP
      Year of make
      09.97 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 220 T D (202.182)
      Power
      55 kW / 75 HP
      Year of make
      06.96 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 220 T D (202.182)
      Power
      70 kW / 95 HP
      Year of make
      06.96 - 09.98
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 230 T (202.083)
      Power
      110 kW / 150 HP
      Year of make
      06.96 - 06.98
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 230 T Kompressor (202.085)
      Power
      142 kW / 193 HP
      Year of make
      06.97 - 09.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 240 T (202.086)
      Power
      125 kW / 170 HP
      Year of make
      06.97 - 09.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 240 T (202.088)
      Power
      125 kW / 170 HP
      Year of make
      09.00 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 250 T Turbo-D (202.188)
      Power
      110 kW / 150 HP
      Year of make
      06.96 - 03.01
      Link
      more info
    • Vehicle model
      Mercedes-Benz C-CLASS T-Model (S202) C 280 T (202.089)
      Power
      145 kW / 197 HP
      Year of make
      06.97 - 03.01
      Link
      more info
  • Mercedes-Benz CLK (C208)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 200 (208.335)
      Power
      100 kW / 136 HP
      Year of make
      06.97 - 06.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 200 Kompressor (208.344)
      Power
      120 kW / 163 HP
      Year of make
      06.00 - 06.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 200 Kompressor (208.345)
      Power
      141 kW / 192 HP
      Year of make
      06.97 - 06.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 230 Kompressor (208.347)
      Power
      142 kW / 193 HP
      Year of make
      06.97 - 06.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 230 Kompressor (208.348)
      Power
      145 kW / 197 HP
      Year of make
      06.00 - 06.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK (C208) CLK 320 (208.365)
      Power
      160 kW / 218 HP
      Year of make
      06.97 - 06.02
      Link
      more info
  • Mercedes-Benz CLK Convertible (A208)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 200 (208.435)
      Power
      100 kW / 136 HP
      Year of make
      03.98 - 03.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 200 Kompressor (208.444)
      Power
      120 kW / 163 HP
      Year of make
      06.00 - 03.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 200 Kompressor (208.445)
      Power
      141 kW / 192 HP
      Year of make
      03.98 - 06.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 230 Kompressor (208.447)
      Power
      142 kW / 193 HP
      Year of make
      03.98 - 06.00
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 230 Kompressor (208.448)
      Power
      145 kW / 197 HP
      Year of make
      06.00 - 03.02
      Link
      more info
    • Vehicle model
      Mercedes-Benz CLK Convertible (A208) CLK 320 (208.465)
      Power
      160 kW / 218 HP
      Year of make
      03.98 - 03.02
      Link
      more info
