Art. No.: 104989

Westfalia Towbar detachable Towball inserted from below -

Art. No.: 104989

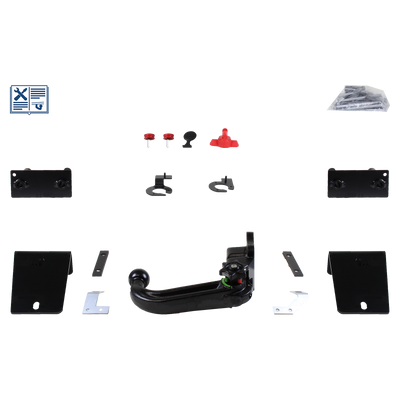

Westfalia Towbar detachable Towball inserted from below -

  • Towing capacity: 3500 kg
  • Vertical load: 150 kg
Westfalia
€ 866.99
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2026-06-18
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Westfalia
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,0 h
Vertical load 2
150 kg
Towing capacity 3
3.500 kg
D-value
16,00 kN
Certification
E13*94/20*1279*00
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
Yes
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
15,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

The development and manufacture of the specific towbar for your vehicle has been taken over by the exclusive manufacturer Westfalia. The Westfalia A40V automatic system is a bottom-mounted towbar system and the top product from Westfalia. The barely visible attachment to your vehicle is just as big a plus as the patented locking system of this bottom-mounted towbar in 1A Westfalia quality.

This towbar can be secured against theft by an integrated lock. Towing capacity up to 3500 kg and a vertical load of 150 kg characterize this towbar. Westfalia indicates a fatigue strength of 16 kN.

A small cut in the bumper is needed to fit this towbar. Bumper cut dimensions and template are included with the installation instructions. In the "matching accessories" category, Rameder offers a cover that conceals the cut-out and is also available from your vehicle manufacturer.

Please also visit our "Bicycle carrier" category, as this trailer coupling is suitable for transporting a bicycle carrier. We deliver this original part from top class manufacturer Westfalia at the best price.

For this towbar we offer additional installation instructions at the Rameder website, where our customers share their installation experiences. These will help to swiftly install it. The official installation guide will of course be enclosed in your delivery too. This towbar features a cathodic electro-dip coating. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. The result is effective corrosion protection combined with a high-quality smooth surface.

Carefully read the instructions and specific indications of the vehicle manufacturer when fitting the towbar. Such information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.
