Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 109726

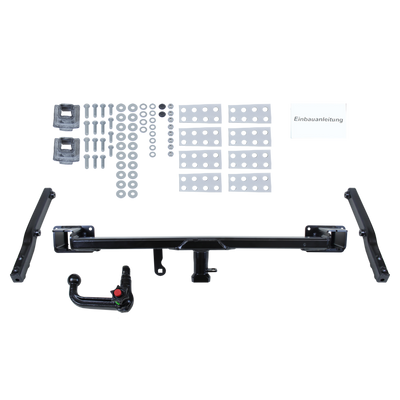

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

Westfalia
  • Westfalia Towbar detachable Towball inserted from below
Art. No.: 109726

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

  • Towing capacity: 2500 kg
  • Vertical load: 100 kg
Please note the special features.
print Suggest a price
Westfalia
You save 19%
RRP € 971.00 € 778.99
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2026-07-01
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • min. blower motor power: 600 W
Additional notes
  • for vehicles with BlueEFFICIENCY or BlueTec technology, please check if the towing capacity is specified in the vehicle documents
Manufacturer
Westfalia
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,5 h
Vertical load 2
100 kg
Towing capacity 3
2.500 kg
D-value
12,80 kN
Certification
E13*R55*01*3522
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
25,90 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

The detachable bottom-mounted towbar from premium manufacturer Westfalia has been specially developed and produced for your vehicle. Westfalia A40V automatic system, a bottom-mounted towbar system. The A40V is Westfalia's bestseller. The system is attached to your vehicle almost invisibly. Another advantage of this bottom-mounted towbar is the patented locking system and you get 1A Westfalia quality.

This anti-theft towbar comes with an integrated lock. This towbar has a towing capacity of up to 2500 kg and a vertical load of 100 kg. Westfalia indicates a fatigue strength of 12.8 kN.

A cut in the bumper is required to fit this towbar. The cut will not be visible. Bumper cut dimensions and template are included with the installation instructions.

In our "Bicycle carriers" category, you will also find suitable transport solutions for your trailer coupling. We deliver this original part from top class manufacturer Westfalia at the best price.

The detailed installation instructions from the manufacturer Westfalia are included with this product. A coating with special paint protects the towbar against corrosion and environmental degradation.

Please read the instructions and specifications of the vehicle manufacturer when retrofitting a towbar. Normally such information can be found in your vehicle user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

Manufacturer information

Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

Address
  • Westfalia-Automotive GmbH
  • Am Sandberg 45
  • 33378 Rheda-Wiedenbrück
  • Nordrhein-Westfalen
  • Germany
Please select your vehicle here for more information!

To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

  • Mercedes-Benz GLK-CLASS (X204)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 200 (204.934)
      Power
      135 kW / 184 HP
      Year of make
      08.13 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 200 CDI (204.901)
      Power
      100 kW / 136 HP
      Year of make
      12.13 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 200 CDI (204.901)
      Power
      105 kW / 143 HP
      Year of make
      07.10 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 220 CDI (204.902)
      Power
      120 kW / 163 HP
      Year of make
      12.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 220 CDI (204.902)
      Power
      125 kW / 170 HP
      Year of make
      12.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 220 CDI 4-matic (204.984)
      Power
      120 kW / 163 HP
      Year of make
      12.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 220 CDI 4-matic (204.984, 204.997)
      Power
      125 kW / 170 HP
      Year of make
      12.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 250 (204.936)
      Power
      155 kW / 211 HP
      Year of make
      08.13 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 250 4-matic (204.937)
      Power
      155 kW / 211 HP
      Year of make
      08.13 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 250 CDI 4-matic (204.982, 204.904)
      Power
      150 kW / 204 HP
      Year of make
      09.09 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 280 4-matic (204.981)
      Power
      170 kW / 231 HP
      Year of make
      06.08 - 06.09
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 300 4-matic (204.981)
      Power
      170 kW / 231 HP
      Year of make
      07.09 - 12.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 300 4-matic (204.990)
      Power
      182 kW / 248 HP
      Year of make
      09.09 - 12.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 300 4-matic (204.990)
      Power
      185 kW / 252 HP
      Year of make
      09.09 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 320 CDI 4-matic (204.983)
      Power
      165 kW / 224 HP
      Year of make
      06.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 (204.956)
      Power
      200 kW / 272 HP
      Year of make
      04.09 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 4-matic (204.987)
      Power
      200 kW / 272 HP
      Year of make
      06.08 - 04.11
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 4-matic (204.988)
      Power
      225 kW / 306 HP
      Year of make
      06.08 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 CDI 4-matic (204.992)
      Power
      165 kW / 224 HP
      Year of make
      07.09 - 01.10
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 CDI 4-matic (204.992)
      Power
      170 kW / 231 HP
      Year of make
      02.10 - 06.15
      Link
      more info
    • Vehicle model
      Mercedes-Benz GLK-CLASS (X204) 350 CDI 4-matic (204.993)
      Power
      195 kW / 265 HP
      Year of make
      07.12 - 06.15
      Link
      more info
