Art. No.: 135255

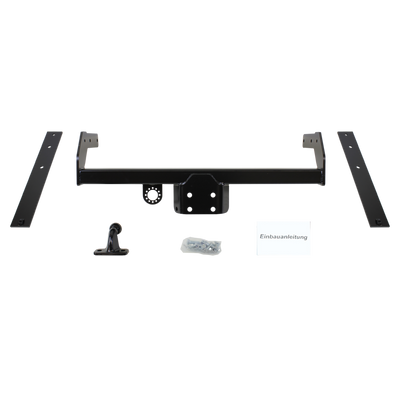

Oris Towing hitch incl. TowTec electrical set 7pins specific - VW

Oris
  • Oris Towing hitch incl. TowTec electrical set 7pins specific
  • Oris Towing hitch incl. TowTec electrical set 7pins specific
Art. No.: 135255

Oris Towing hitch incl. TowTec electrical set 7pins specific - VW

  • Towbar variant: with 2-hole flange ball
  • Towing capacity: 2500 kg
  • Vertical load: 100 kg
  • Electrical set-model: Relay
print
Oris
You save 32%
RRP € 532.00 € 357.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
Oris
Manufacturer electrical set
TowTec
Towbar type
Towing hitch
Towbar variant
with 2-hole flange ball
Intermediate plate for expansion to 4-hole flange 1
ZB7354
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Relay
Vehicle-specific plug connector
Yes
Towing capacity 2
2.500 kg
Vertical load 3
100 kg
D-value
14,40 kN
Certification
e4*94/20*2474*01
Bumper alteration neccessary
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Swap system suitable
Yes
Weight
25,40 kg
Installation time (in hours) 4
2,0 h
C2 to block light
Yes
Validation required
Yes
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
No
Voltage [V]
12
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
2-Way adjustable
Hole pattern [mm]
90 mm
Hole diameter [mm]
17 mm
1 Not included.
2 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
3 the maximum vertical load depends on the vehicle manufacturer and may be lower
4 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set with 2-hole flanged ball including 7-pin electrics for your vehicle The complete set, consisting of a towbar from Oris and the necessary 7-pin electrical kit, optimally prepares your vehicle for all challenges. The electrics and towbar have been developed to fit your vehicle perfectly. Trailers with a weight of up to 2500 kg can be towed.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. Please note the instructions of the vehicle manufacturer in your vehicle user manual. The 2-hole flange ball could be seen as an obstacle by parking assistance systems. We recommend fitting a detachable towbar if your vehicle has parking sensors.

The installation instructions required for the installation on your are included in the scope of delivery of the complete set.
