Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 144237

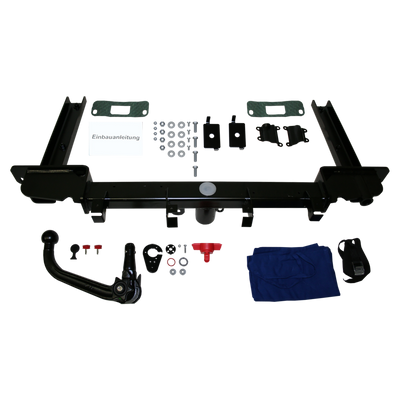

Westfalia Towbar detachable incl. TowTec electrical set 7pins specific - Opel

Westfalia
  • Westfalia Towbar detachable incl. TowTec electrical set 7pins specific
  • Westfalia Towbar detachable incl. TowTec electrical set 7pins specific
Art. No.: 144237

Westfalia Towbar detachable incl. TowTec electrical set 7pins specific - Opel

  • Towbar variant: Towball inserted from below
  • Towing capacity: 1800 kg
  • Vertical load: 75 kg
  • Electrical set-model: Data bus
Please note the special features.
print Suggest a price
Westfalia
You save 27%
RRP € 1,005.00 € 729.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Trailer Hitch: for vehicles without factory fitted bicycle carrier system
Manufacturer towbar
Westfalia
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Vehicle-specific plug connector
Yes
Towing capacity 1
1.800 kg
Vertical load 2
75 kg
D-value
9,60 kN
Ball head lockable
lockable
Certification
E13*94/20*3080*00
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
Yes
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
25,84 kg
Installation time (in hours) 3
4,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set for your vehicle: detachable with 7-pin electrics Consisting of a detachable towbar from Westfalia and the necessary 7-pin electrical kit, this complete set prepares your vehicle ideally for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly, allowing you to tow a trailer up to 1800 kg. When not in use, you can simply remove the ball head and stow it in the trunk.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. Please note the instructions of the vehicle manufacturer in your vehicle user manual.

This complete set provides you with everything, from the smallest screw to the installation instructions, required to mount a towbar on your .

matching accessory for Westfalia Towbar detachable incl. TowTec electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • BoldR Group GmbH
    • Am Eichberg Flauer 1
    • 07338 Leutenberg / OT Munschwitz
    • Thuringia
    • Germany
    Address
    • Westfalia-Automotive GmbH
    • Am Sandberg 45
    • 33378 Rheda-Wiedenbrück
    • Nordrhein-Westfalen
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Opel ASTRA J Sports Tourer (P10)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.3 CDTI (35)
        Power
        70 kW / 95 HP
        Year of make
        10.10 - 10.14
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.4 (35)
        Power
        64 kW / 87 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.4 (35)
        Power
        74 kW / 101 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.4 LPG (35)
        Power
        103 kW / 140 HP
        Year of make
        12.11 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.4 Turbo (35)
        Power
        88 kW / 120 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.4 Turbo (35)
        Power
        103 kW / 140 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.6 (35)
        Power
        85 kW / 116 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.6 CDTi (35)
        Power
        81 kW / 110 HP
        Year of make
        02.14 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.6 CDTi (35)
        Power
        100 kW / 136 HP
        Year of make
        11.13 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.6 SIDI (35)
        Power
        125 kW / 170 HP
        Year of make
        12.12 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.6 Turbo (35)
        Power
        132 kW / 180 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.7 CDTI (35)
        Power
        74 kW / 101 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.7 CDTI (35)
        Power
        81 kW / 110 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.7 CDTI (35)
        Power
        92 kW / 125 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 1.7 CDTI (35)
        Power
        96 kW / 131 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 2.0 BiTurbo CDTI (35)
        Power
        143 kW / 194 HP
        Year of make
        09.12 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 2.0 CDTI (35)
        Power
        96 kW / 131 HP
        Year of make
        01.14 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 2.0 CDTI (35)
        Power
        118 kW / 160 HP
        Year of make
        10.10 - 10.15
        Link
        more info
      • Vehicle model
        Opel ASTRA J Sports Tourer (P10) 2.0 CDTI (35)
        Power
        121 kW / 165 HP
        Year of make
        08.11 - 10.15
        Link
        more info
