Art. No.: 163313

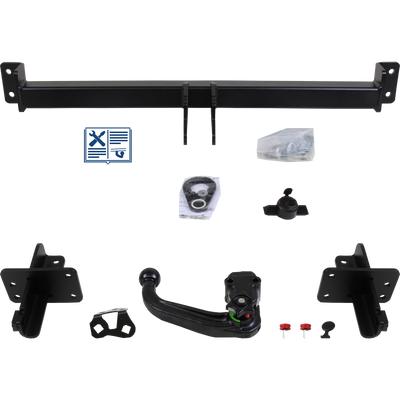

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

Westfalia
  • Westfalia Towbar detachable Towball inserted from below
Art. No.: 163313

Westfalia Towbar detachable Towball inserted from below - Mercedes-Benz

  • Towing capacity: 2100 kg
  • Vertical load: 140 kg
Please note the special features.
print Suggest a price
Westfalia
You save 20%
RRP € 795.00 € 634.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • min. blower motor power: 600 W
  • Model exclusion: AMG
Manufacturer
Westfalia
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,0 h
Vertical load 2
140 kg
Towing capacity 3
2.100 kg
D-value
11,80 kN
Certification
E13*R55*01*10885
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
26,51 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

The detachable bottom-mounted towbar from premium manufacturer Westfalia has been specially developed and produced for your vehicle. The Westfalia A40V automatic system is a bottom-mounted towbar system and the top product from Westfalia. The barely visible attachment to your vehicle is just as big a plus as the patented locking system of this bottom-mounted towbar in 1A Westfalia quality.

This anti-theft towbar comes with an integrated lock. This towbar has a towing capacity of up to 2100 kg and a vertical load of 140 kg. Westfalia indicates a fatigue strength of 11.8 kN.

A cut in the lower part of the bumper is required during installation. This cut will not be visible.

In our "Bicycle carriers" category, you will also find suitable transport solutions for your trailer coupling. We deliver this original part from top class manufacturer Westfalia at the best price.

The ordered article includes detailed assembly instructions from Westfalia. This towbar features a cathodic electro-dip coating. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. The result is effective corrosion protection combined with a high-quality smooth surface.

Carefully read the instructions and specific indications of the vehicle manufacturer when fitting the towbar. Such information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

Manufacturer information

Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

Address
  • Westfalia-Automotive GmbH
  • Am Sandberg 45
  • 33378 Rheda-Wiedenbrück
  • Nordrhein-Westfalen
  • Germany
Please select your vehicle here for more information!

To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

  • Mercedes-Benz E-CLASS (W213)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 180 (213.040)
      Power
      115 kW / 156 HP
      Year of make
      01.16 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 180 (213.076)
      Power
      115 kW / 156 HP
      Year of make
      07.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 (213.042)
      Power
      135 kW / 184 HP
      Year of make
      01.16 - 05.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 (213.080)
      Power
      145 kW / 197 HP
      Year of make
      10.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 4-matic (213.043)
      Power
      135 kW / 184 HP
      Year of make
      07.16 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 EQ Boost (213.080)
      Power
      145 kW / 197 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 EQ Boost 4-matic (213.087)
      Power
      145 kW / 197 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 d (213.012)
      Power
      118 kW / 160 HP
      Year of make
      11.18 - 08.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 200 d (213.013)
      Power
      110 kW / 150 HP
      Year of make
      07.16 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d (213.004)
      Power
      120 kW / 163 HP
      Year of make
      01.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d (213.004)
      Power
      143 kW / 194 HP
      Year of make
      01.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d (213.004)
      Power
      147 kW / 200 HP
      Year of make
      02.22 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d 4-matic (213.005)
      Power
      120 kW / 163 HP
      Year of make
      10.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d 4-matic (213.005)
      Power
      143 kW / 194 HP
      Year of make
      10.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 220 d 4-matic (213.005)
      Power
      147 kW / 200 HP
      Year of make
      02.22 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 250 (213.045)
      Power
      155 kW / 211 HP
      Year of make
      07.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 (213.048)
      Power
      180 kW / 245 HP
      Year of make
      07.16 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 (213.048, 213.083)
      Power
      190 kW / 258 HP
      Year of make
      02.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 4-matic (213.049)
      Power
      180 kW / 245 HP
      Year of make
      01.16 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 EQ Boost (213.083)
      Power
      190 kW / 258 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 d (213.008)
      Power
      180 kW / 245 HP
      Year of make
      12.17 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 d 4-matic (213.019)
      Power
      195 kW / 265 HP
      Year of make
      01.21 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 de (213.016)
      Power
      225 kW / 306 HP
      Year of make
      10.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 de 4-matic (213.011)
      Power
      225 kW / 306 HP
      Year of make
      06.20 - 08.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 e (213.053)
      Power
      235 kW / 320 HP
      Year of make
      11.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 300 e 4-matic (213.054)
      Power
      235 kW / 320 HP
      Year of make
      07.20 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 EQ Boost (213.085)
      Power
      220 kW / 299 HP
      Year of make
      08.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 d (213.022)
      Power
      210 kW / 286 HP
      Year of make
      08.18 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 d (213.033)
      Power
      190 kW / 258 HP
      Year of make
      01.16 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 d 4-matic (213.034)
      Power
      190 kW / 258 HP
      Year of make
      06.17 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 e (213.050)
      Power
      210 kW / 286 HP
      Year of make
      07.16 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 350 e (213.050)
      Power
      235 kW / 320 HP
      Year of make
      09.16 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 400 4-matic (213.066)
      Power
      245 kW / 333 HP
      Year of make
      06.16 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 400 4-matic (213.071)
      Power
      245 kW / 333 HP
      Year of make
      07.16 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 400 d (213.020)
      Power
      250 kW / 340 HP
      Year of make
      12.18 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 400 d 4-matic (213.023)
      Power
      243 kW / 330 HP
      Year of make
      06.20 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 400 d 4-matic (213.023)
      Power
      250 kW / 340 HP
      Year of make
      04.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 450 4-matic (213.068)
      Power
      270 kW / 367 HP
      Year of make
      08.18 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS (W213) E 450 EQ Boost 4-matic (213.059)
      Power
      270 kW / 367 HP
      Year of make
      07.20 - 10.23
      Link
      more info
  • Mercedes-Benz E-CLASS T-Model (S213)
    • Vehicle model
      Power
      Year of make
      Link
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 (213.242)
      Power
      135 kW / 184 HP
      Year of make
      07.16 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 4-matic (213.243)
      Power
      135 kW / 184 HP
      Year of make
      01.17 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 EQ Boost (213.280)
      Power
      145 kW / 197 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 EQ Boost 4-matic (213.287)
      Power
      145 kW / 197 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 d (213.212)
      Power
      118 kW / 160 HP
      Year of make
      11.18 - 08.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 200 d (213.213)
      Power
      110 kW / 150 HP
      Year of make
      10.16 - 06.19
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 220 d (213.204)
      Power
      120 kW / 163 HP
      Year of make
      07.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 220 d (213.204)
      Power
      143 kW / 194 HP
      Year of make
      07.16 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 220 d (213.204)
      Power
      147 kW / 200 HP
      Year of make
      02.22 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 220 d 4-matic (213.205)
      Power
      143 kW / 194 HP
      Year of make
      01.17 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 220 d 4-matic (213.205)
      Power
      147 kW / 200 HP
      Year of make
      02.22 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 250 (213.245)
      Power
      155 kW / 211 HP
      Year of make
      07.16 - 11.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 EQ Boost (213.283)
      Power
      190 kW / 258 HP
      Year of make
      06.19 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 d (213.208)
      Power
      180 kW / 245 HP
      Year of make
      12.17 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 d 4-matic (213.219)
      Power
      195 kW / 265 HP
      Year of make
      01.21 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 de (213.216)
      Power
      225 kW / 306 HP
      Year of make
      10.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 de 4-matic (213.211)
      Power
      225 kW / 306 HP
      Year of make
      08.20 - 08.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 300 e (213.253)
      Power
      235 kW / 320 HP
      Year of make
      06.20 - 08.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 350 d (213.222)
      Power
      210 kW / 286 HP
      Year of make
      08.18 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 350 d (213.233)
      Power
      190 kW / 258 HP
      Year of make
      10.16 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 350 d 4-matic (213.234)
      Power
      190 kW / 258 HP
      Year of make
      06.17 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 400 4-matic (213.271)
      Power
      245 kW / 333 HP
      Year of make
      10.16 - 05.18
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 400 d (213.220)
      Power
      250 kW / 340 HP
      Year of make
      02.19 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 400 d 4-matic (213.223)
      Power
      243 kW / 330 HP
      Year of make
      07.20 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 400 d 4-matic (213.223)
      Power
      250 kW / 340 HP
      Year of make
      04.18 - 10.23
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 450 4-matic (213.268)
      Power
      270 kW / 367 HP
      Year of make
      08.18 - 06.20
      Link
      more info
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S213) E 450 EQ Boost (213.259)
      Power
      270 kW / 367 HP
      Year of make
      08.20 - 08.23
      Link
      more info
Rameder uses cookies to provide you with the best possible service. If you continue to surf the online shop, you agree to the use of cookies. Learn more in the privacy policy.
