Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 166363

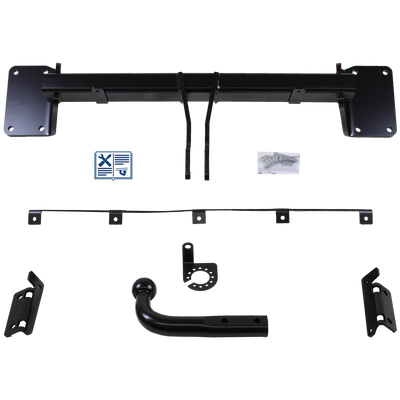

Oris Towbar rigid with screwed-on ball head - BMW

Oris
  • Oris Towbar rigid with screwed-on ball head
Art. No.: 166363

Oris Towbar rigid with screwed-on ball head - BMW

  • Towing capacity: 3500 kg
  • Vertical load: 140 kg
print Suggest a price
Oris
50% Special offer discount
instead of € 173.99 € 86.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Additional notes
  • to fit this towbar, one set of rivets is needed, which you can find under "Matching accessories"
Manufacturer
Oris
Towbar type
rigid
Towbar variant
with screwed-on ball head
Assembly time 1
1,5 h
Vertical load 2
140 kg
Towing capacity 3
3.500 kg
D-value
16,29 kN
Certification
E7*55R*011928
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
21,29 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

Price-conscious drivers of your vehicle prefer the rigid towbar with the bolted ball head. It is manufactured by Oris and stands for long durability and an attractive price. Our rigid bolt-on Oris towbar system ASP is inexpensive to purchase, very durable and uncomplicated. With this model for your vehicle, as with all rigid towbars, the focus is on very good durability with frequent use.

Towing capacity up to 3500 kg and a vertical load of 140 kg characterize this towbar. Oris indicates a fatigue strength of 16.29 kN.

A cut in the lower part of the bumper is required during installation. This cut will not be visible.

This towbar is designed to carry bicycle carriers. You can find offers for this in the "Bicycle carrier" category. We deliver this original part from Oris at the best price.

The ordered article includes detailed assembly instructions from Oris. A cathodic electro-dip coating is present. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. Effective corrosion protection and a high-quality smooth surface is the result.

In reverse, the parking assistance sensors might detect the tow ball of this rigid towbar. It could be recognized as an obstacle. Please read the instructions and specifications of the vehicle manufacturer when retrofitting a towbar. Normally such information can be found in your vehicle user manual.

matching accessory for Oris Towbar rigid with screwed-on ball head (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • ACPS Automotive Services GmbH
    • Regioparkring 1
    • 41199 Mönchengladbach
    • Nordrhein-Westfalen
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • BMW X5 (G05, F95)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        BMW X5 (G05, F95) M
        Power
        441 kW / 600 HP
        Year of make
        12.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) M Competition
        Power
        460 kW / 625 HP
        Year of make
        12.19 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) M Competition Mild Hybrid
        Power
        460 kW / 625 HP
        Year of make
        04.23 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) sDrive 40 i
        Power
        250 kW / 340 HP
        Year of make
        08.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 25 d
        Power
        155 kW / 211 HP
        Year of make
        08.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 25 d
        Power
        170 kW / 231 HP
        Year of make
        08.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 d
        Power
        183 kW / 249 HP
        Year of make
        08.18 - 07.20
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 d
        Power
        195 kW / 265 HP
        Year of make
        08.18 - 07.20
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 d Mild-Hybrid
        Power
        183 kW / 249 HP
        Year of make
        08.20 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 d Mild-Hybrid
        Power
        210 kW / 286 HP
        Year of make
        08.20 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 d Mild-Hybrid
        Power
        219 kW / 298 HP
        Year of make
        04.23 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 30 i
        Power
        195 kW / 265 HP
        Year of make
        09.19 - 12.21
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 40 d Mild-Hybrid
        Power
        250 kW / 340 HP
        Year of make
        05.20 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 40 d Mild-Hybrid
        Power
        259 kW / 352 HP
        Year of make
        06.23 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 40 i
        Power
        250 kW / 340 HP
        Year of make
        08.18 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 40 i Mild-Hybrid
        Power
        245 kW / 333 HP
        Year of make
        12.20 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 40 i Mild-Hybrid
        Power
        280 kW / 381 HP
        Year of make
        04.23 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 45 e Plug-in Hybrid
        Power
        290 kW / 394 HP
        Year of make
        06.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 45 e Plug-in-Hybrid
        Power
        235 kW / 320 HP
        Year of make
        06.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 50 e Plug-in-Hybrid
        Power
        360 kW / 489 HP
        Year of make
        04.23 -
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive 50 i
        Power
        340 kW / 462 HP
        Year of make
        08.18 - 07.19
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive M 50 d
        Power
        294 kW / 400 HP
        Year of make
        08.18 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive M50 i
        Power
        390 kW / 530 HP
        Year of make
        08.19 - 03.23
        Link
        more info
      • Vehicle model
        BMW X5 (G05, F95) xDrive M60 i Mild-Hybrid
        Power
        390 kW / 530 HP
        Year of make
        04.23 -
        Link
        more info
    • BMW X7 (G07)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        BMW X7 (G07) xDrive 30 d
        Power
        155 kW / 211 HP
        Year of make
        03.19 - 08.20
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 30 d
        Power
        183 kW / 249 HP
        Year of make
        03.19 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 30 d
        Power
        195 kW / 265 HP
        Year of make
        03.19 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 d Mild-Hybrid
        Power
        155 kW / 211 HP
        Year of make
        08.20 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 d Mild-Hybrid
        Power
        250 kW / 340 HP
        Year of make
        08.20 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 d Mild-Hybrid
        Power
        259 kW / 352 HP
        Year of make
        07.22 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 i
        Power
        250 kW / 340 HP
        Year of make
        03.19 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 i Mild Hybrid
        Power
        280 kW / 381 HP
        Year of make
        07.22 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive 40 i Mild-Hybrid
        Power
        245 kW / 333 HP
        Year of make
        12.20 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive M 50 d
        Power
        294 kW / 400 HP
        Year of make
        03.19 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive M 50 i
        Power
        390 kW / 530 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        BMW X7 (G07) xDrive M 60 i Mild Hybrid
        Power
        390 kW / 530 HP
        Year of make
        07.22 -
        Link
        more info
