Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 167241

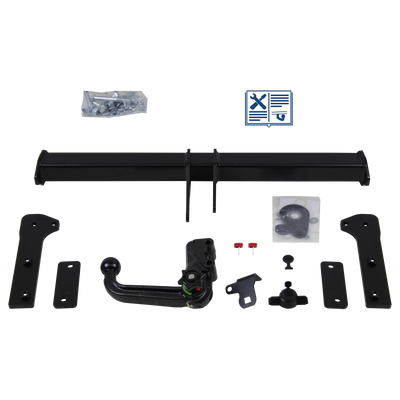

Westfalia Towbar detachable incl. TowTec electrical set 7pins specific - Volvo

Westfalia
  • Westfalia Towbar detachable incl. TowTec electrical set 7pins specific
  • Westfalia Towbar detachable incl. TowTec electrical set 7pins specific
Art. No.: 167241

Westfalia Towbar detachable incl. TowTec electrical set 7pins specific - Volvo

  • Towbar variant: Towball inserted from below
  • Towing capacity: 2100 kg
  • Vertical load: 85 kg
  • Electrical set-model: Data bus
print Suggest a price
Westfalia
10% Special offer discount
instead of € 881.98 € 793.78
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
Westfalia
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Towing capacity 1
2.100 kg
Vertical load 2
85 kg
D-value
10,99 kN
Ball head lockable
lockable
Certification
E4*94/20*4380*00
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
22,79 kg
Installation time (in hours) 3
3,5 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete detachable towbar set with 7-pin electrics for your chosen vehicle

With this complete set, consisting of a detachable towbar from Westfalia and the necessary 7-pin electrical kit, you are well prepared for all challenges. The electrics and towbar have been developed to fit your vehicle perfectly. Trailers with a weight of up to 2100 kg can be towed with it. The ball head can be easily removed when not in use and stowed in the trunk.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. Please note the instructions of the vehicle manufacturer in your vehicle user manual.

From the smallest screw to the installation instructions, this complete set provides you with everything you need to install the towbar on your .

matching accessory for Westfalia Towbar detachable incl. TowTec electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • BoldR Group GmbH
    • Am Eichberg Flauer 1
    • 07338 Leutenberg / OT Munschwitz
    • Thuringia
    • Germany
    Address
    • Westfalia-Automotive GmbH
    • Am Sandberg 45
    • 33378 Rheda-Wiedenbrück
    • Nordrhein-Westfalen
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Volvo V70 III (135)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Volvo V70 III (135) 1.6 D
        Power
        80 kW / 109 HP
        Year of make
        07.09 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 1.6 DRIVe / D2
        Power
        84 kW / 114 HP
        Year of make
        04.11 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0
        Power
        107 kW / 145 HP
        Year of make
        10.07 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0 BiFuel
        Power
        157 kW / 214 HP
        Year of make
        03.13 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0 D
        Power
        100 kW / 136 HP
        Year of make
        10.07 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0 FlexiFuel
        Power
        107 kW / 146 HP
        Year of make
        01.08 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0 GDI
        Power
        157 kW / 214 HP
        Year of make
        04.12 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.0 T
        Power
        149 kW / 203 HP
        Year of make
        09.09 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.4 D
        Power
        120 kW / 163 HP
        Year of make
        04.07 - 12.10
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.4 D
        Power
        129 kW / 175 HP
        Year of make
        04.09 - 12.10
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.5 T
        Power
        147 kW / 200 HP
        Year of make
        08.07 - 12.09
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.5 T
        Power
        170 kW / 231 HP
        Year of make
        04.09 - 12.12
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.5 T FlexiFuel
        Power
        147 kW / 200 HP
        Year of make
        05.08 - 12.09
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 2.5 T FlexiFuel
        Power
        170 kW / 231 HP
        Year of make
        04.09 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 3.2
        Power
        175 kW / 238 HP
        Year of make
        08.07 - 12.10
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 3.2
        Power
        179 kW / 243 HP
        Year of make
        04.10 - 12.14
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 3.2 AWD
        Power
        175 kW / 238 HP
        Year of make
        04.07 - 12.10
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) 3.2 AWD
        Power
        179 kW / 243 HP
        Year of make
        04.10 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D2
        Power
        88 kW / 120 HP
        Year of make
        03.15 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D3
        Power
        100 kW / 136 HP
        Year of make
        10.07 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D3
        Power
        110 kW / 150 HP
        Year of make
        03.15 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D3 / D4
        Power
        120 kW / 163 HP
        Year of make
        03.10 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D4
        Power
        133 kW / 181 HP
        Year of make
        10.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D4 AWD
        Power
        120 kW / 163 HP
        Year of make
        10.07 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D4 AWD
        Power
        133 kW / 181 HP
        Year of make
        10.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5
        Power
        136 kW / 185 HP
        Year of make
        04.07 - 12.09
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5
        Power
        151 kW / 205 HP
        Year of make
        10.08 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5
        Power
        158 kW / 215 HP
        Year of make
        04.11 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5
        Power
        169 kW / 230 HP
        Year of make
        03.11 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5 AWD
        Power
        136 kW / 185 HP
        Year of make
        04.07 - 12.09
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5 AWD
        Power
        151 kW / 205 HP
        Year of make
        12.09 - 12.11
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5 AWD
        Power
        158 kW / 215 HP
        Year of make
        04.11 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) D5 AWD
        Power
        169 kW / 230 HP
        Year of make
        03.11 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T4
        Power
        132 kW / 180 HP
        Year of make
        10.10 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T4
        Power
        140 kW / 190 HP
        Year of make
        03.15 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T4F
        Power
        132 kW / 180 HP
        Year of make
        01.11 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T5
        Power
        177 kW / 241 HP
        Year of make
        01.10 - 12.14
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T5
        Power
        180 kW / 245 HP
        Year of make
        10.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T6 AWD
        Power
        210 kW / 286 HP
        Year of make
        08.07 - 12.10
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T6 AWD
        Power
        224 kW / 305 HP
        Year of make
        01.10 - 12.15
        Link
        more info
      • Vehicle model
        Volvo V70 III (135) T6 AWD
        Power
        242 kW / 329 HP
        Year of make
        11.13 - 04.16
        Link
        more info
    • Volvo XC70 II (136)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Volvo XC70 II (136) 2.4 D
        Power
        129 kW / 175 HP
        Year of make
        06.09 - 12.10
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) 2.4 D / D4 AWD
        Power
        120 kW / 163 HP
        Year of make
        08.07 - 04.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) 3.2 AWD
        Power
        175 kW / 238 HP
        Year of make
        08.07 - 12.11
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) 3.2 AWD
        Power
        179 kW / 243 HP
        Year of make
        05.10 - 12.14
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D3
        Power
        120 kW / 163 HP
        Year of make
        04.10 - 12.15
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D4
        Power
        133 kW / 181 HP
        Year of make
        10.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D4 AWD
        Power
        133 kW / 181 HP
        Year of make
        10.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D5 AWD
        Power
        136 kW / 185 HP
        Year of make
        04.07 - 12.09
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D5 AWD
        Power
        151 kW / 205 HP
        Year of make
        04.09 - 12.11
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D5 AWD
        Power
        158 kW / 215 HP
        Year of make
        04.11 - 12.15
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D5 AWD
        Power
        162 kW / 220 HP
        Year of make
        03.15 - 04.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) D5 AWD
        Power
        169 kW / 230 HP
        Year of make
        11.13 - 04.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T5
        Power
        180 kW / 245 HP
        Year of make
        10.13 - 12.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T5 AWD
        Power
        187 kW / 254 HP
        Year of make
        08.15 - 12.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T6 AWD
        Power
        183 kW / 249 HP
        Year of make
        03.15 - 12.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T6 AWD
        Power
        210 kW / 286 HP
        Year of make
        01.08 - 12.16
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T6 AWD
        Power
        224 kW / 304 HP
        Year of make
        01.10 - 04.15
        Link
        more info
      • Vehicle model
        Volvo XC70 II (136) T6 Polestar AWD
        Power
        242 kW / 329 HP
        Year of make
        11.13 - 12.16
        Link
        more info
    Rameder uses cookies to provide you with the best possible service. If you continue to surf the online shop, you agree to the use of cookies. Learn more in the privacy policy.
