Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 177752

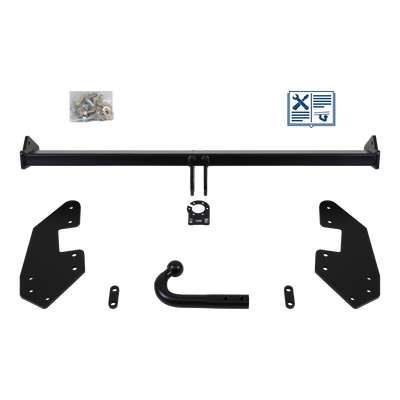

AUTO-HAK Towbar rigid incl. ECS electrical set 7pins specific - Toyota

AUTO-HAK
  • AUTO-HAK Towbar rigid incl. ECS electrical set 7pins specific
  • AUTO-HAK Towbar rigid incl. ECS electrical set 7pins specific
Art. No.: 177752

AUTO-HAK Towbar rigid incl. ECS electrical set 7pins specific - Toyota

  • Towbar variant: with screwed-on ball head
  • Towing capacity: 3200 kg
  • Vertical load: 130 kg
  • Electrical set-model: without indicator monitoring
Please note the special features.
print Suggest a price
AUTO-HAK
10% Special offer discount
instead of € 345.98 € 311.38
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: 2WD
Manufacturer towbar
AUTO-HAK
Manufacturer electrical set
ECS
Towbar type
rigid
Towbar variant
with screwed-on ball head
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
without indicator monitoring
Vehicle-specific plug connector
Yes
Towing capacity 1
3.200 kg
Vertical load 2
130 kg
D-value
15,71 kN
Certification
E20-55R-01 4861
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Weight
24,46 kg
Installation time (in hours) 3
3,5 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete rigid towbar set with 7-pin electrics for your chosen vehicle

With this complete set, consisting of a rigid towbar from AUTO-HAK and the necessary 7-pin electrical kit, you are well prepared for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly. You can tow trailers up to 3200 kg.

It is not necessary to present the vehicle to an expert or to register it in the vehicle documents of your vehicle . The instructions of the vehicle manufacturer in your vehicle user manual must be complied with. It is possible that the parking assist sensors of the car detect the tow ball. In reverse the towbar could be recognized as an obstacle. If your vehicle has a parking assistance system, we recommend that you install a detachable towbar.

This complete set provides you with everything you need, from the smallest screw to the installation instructions, to install the towbar on your .

matching accessory for AUTO-HAK Towbar rigid incl. ECS electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • ECS Electronics B.V.
    • Moerlaken 3
    • 4825 AR Breda
    • Noord-Brabant
    • Netherlands
    Address
    • Auto-Hak Sp. z o.o.
    • ul.Sloneczna 16K
    • 76-200 Slupsk
    • Województwo pomorskie
    • Poland
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Toyota HILUX VIII Pickup (_N1_)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125)
        Power
        125 kW / 170 HP
        Year of make
        10.18 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125_)
        Power
        108 kW / 147 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.4 D 4WD (GUN125_, GUN125R)
        Power
        110 kW / 150 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.5 D 4WD (KUN125_)
        Power
        74 kW / 101 HP
        Year of make
        08.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.5 D 4WD (KUN125_)
        Power
        75 kW / 102 HP
        Year of make
        08.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.5 D 4WD (KUN125_)
        Power
        106 kW / 144 HP
        Year of make
        05.15 - 08.17
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.7 4WD (TGN126_)
        Power
        118 kW / 160 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.7 4WD (TGN126_)
        Power
        121 kW / 165 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.7 Dual VVTi Flexfuel 4WD (TGN128_)
        Power
        120 kW / 163 HP
        Year of make
        05.15 - 11.21
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D 4WD (GUN126)
        Power
        165 kW / 224 HP
        Year of make
        10.22 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D 4WD (GUN126_)
        Power
        128 kW / 174 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D-4D 48V MHEV 4WD (GUN126)
        Power
        150 kW / 204 HP
        Year of make
        03.24 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D-4D 4WD (GUN126)
        Power
        150 kW / 204 HP
        Year of make
        06.20 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D-4D 4WD (GUN126)
        Power
        169 kW / 230 HP
        Year of make
        11.24 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D-4D 4WD (GUN126_, GUN126R)
        Power
        130 kW / 177 HP
        Year of make
        05.15 - 02.21
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 2.8 D-4D MHEV 4WD (GUN126)
        Power
        169 kW / 230 HP
        Year of make
        11.24 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 3.0 D 4WD (KUN126, KUN136)
        Power
        120 kW / 163 HP
        Year of make
        08.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 3.0 D 4WD (LAN125_)
        Power
        70 kW / 95 HP
        Year of make
        05.15 -
        Link
        more info
      • Vehicle model
        Toyota HILUX VIII Pickup (_N1_) 4.0 V6 VVTi 4WD (GGN125, GGN135)
        Power
        175 kW / 238 HP
        Year of make
        07.15 -
        Link
        more info
