Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 180886

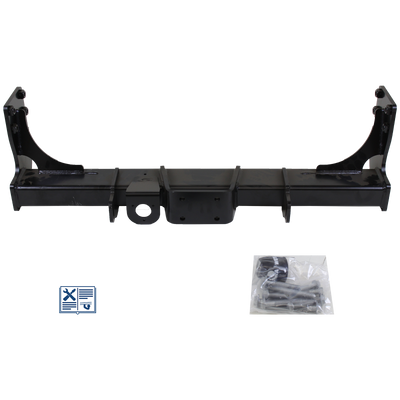

Westfalia Towing hitch incl. ECS electrical set 7pins specific - Man, VW

Westfalia
  • Westfalia Towing hitch incl. ECS electrical set 7pins specific
  • Westfalia Towing hitch incl. ECS electrical set 7pins specific
Art. No.: 180886

Westfalia Towing hitch incl. ECS electrical set 7pins specific - Man, VW

  • Towbar variant: 4-hole without flange ball
  • Towing capacity: 3500 kg
  • Vertical load: 150 kg
  • Electrical set-model: Data bus
Please note the special features.
print
Westfalia
You save 19%
RRP € 585.00 € 468.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Following accessories are necessary for installing this product: 155976
Manufacturer towbar
Westfalia
Manufacturer electrical set
ECS
Towbar type
Towing hitch
Towbar variant
4-hole without flange ball
Suitable flange ball 1
155976
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Essential accessories 1
155976
Towing capacity 2
3.500 kg
Vertical load 3
150 kg
D-value
21,00 kN
Certification
E13*R55*01*4077
Bumper alteration neccessary
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Weight
22,41 kg
Installation time (in hours) 4
2,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
Yes
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
not height adjustable
1 Not included.
2 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
3 the maximum vertical load depends on the vehicle manufacturer and may be lower
4 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set for your vehicle: for 4-hole flanged ball including 7-pin electrics Consisting of a towbar from Westfalia and the necessary 7-pin electrical kit, this complete set prepares your vehicle ideally for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly. You can tow trailers up to 3500 kg.

The vehicle does not have to be presented to an expert after installation of the complete kit. There is also no need to register your vehicle in the vehicle documents . The instructions of the vehicle manufacturer in your vehicle user manual must be complied with. This 4-hole tow ball can be detected by the car's parking assist system as an obstacle when the flange ball is in the sensor zone. If your vehicle has a parking assistance system, we recommend that you install a detachable towbar.

Only the article 155976 and the flange ball 155976 are also required for this complete set. The installation instructions required for the installation on your are included in the scope of delivery of the complete set.

matching accessory for Westfalia Towing hitch incl. ECS electrical set 7pins specific (3)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • ECS Electronics B.V.
    • Moerlaken 3
    • 4825 AR Breda
    • Noord-Brabant
    • Netherlands
    Address
    • Westfalia-Automotive GmbH
    • Am Sandberg 45
    • 33378 Rheda-Wiedenbrück
    • Nordrhein-Westfalen
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Man TGE Platform/Chassis (UZ_)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI
        Power
        75 kW / 102 HP
        Year of make
        11.16 - 06.24
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI
        Power
        130 kW / 177 HP
        Year of make
        11.16 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI (UZB, UZC, 08V, UZH, UZI, 10V, UZO, UZP, 21V,...
        Power
        103 kW / 140 HP
        Year of make
        11.16 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI (UZB, UZC, UZH, UZI, UZO, UZP, UZJ, UZK, 14V,...
        Power
        120 kW / 163 HP
        Year of make
        11.22 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI AWD
        Power
        130 kW / 177 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI AWD (UZB, UZC, 15V, UZH, UZI, 19V, UZO, UZP,...
        Power
        103 kW / 140 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI AWD (UZB, UZC, UZH, UZI, UZO, UZP, 15V, 19V)
        Power
        120 kW / 163 HP
        Year of make
        11.22 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI RWD
        Power
        90 kW / 122 HP
        Year of make
        08.17 - 12.21
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI RWD
        Power
        130 kW / 177 HP
        Year of make
        07.17 - 06.24
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI RWD (UZB, UZC, UZD, 14V, 29V, UZH, UZI, 18V, 30V...
        Power
        103 kW / 140 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        Man TGE Platform/Chassis (UZ_) 2.0 TDI RWD (UZB, UZC, UZH, UZI, UZO, UZP, 14V, 18V, 22V...
        Power
        120 kW / 163 HP
        Year of make
        03.23 -
        Link
        more info
    • VW CRAFTER Platform/Chassis (SZ_)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI 4motion (SZB, SZC, SZH, SZI, SZO, SZP)
        Power
        120 kW / 163 HP
        Year of make
        11.22 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI 4motion (SZB, SZC, SZH, SZI, SZO, SZP, SZU, SZV)
        Power
        103 kW / 140 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI 4motion (SZB, SZC, SZH, SZI, SZO, SZP, SZU, SZV)
        Power
        130 kW / 177 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI FWD (SZB, SZC, SZH, SZI, SZJ, SZK, SZO, SZP)
        Power
        120 kW / 163 HP
        Year of make
        11.22 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI FWD (SZB, SZC, SZH, SZI, SZJ, SZK, SZO, SZP, SZS...
        Power
        75 kW / 102 HP
        Year of make
        11.16 - 06.24
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI FWD (SZB, SZC, SZH, SZI, SZJ, SZK, SZO, SZP, SZS...
        Power
        103 kW / 140 HP
        Year of make
        11.16 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI FWD (SZB, SZC, SZH, SZI, SZJ, SZK, SZO, SZP, SZS...
        Power
        130 kW / 177 HP
        Year of make
        11.16 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI RWD (SZB, SZC, SZD, SZH, SZI, SZO, SZP, SZQ)
        Power
        120 kW / 163 HP
        Year of make
        03.23 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI RWD (SZB, SZC, SZD, SZH, SZI, SZO, SZP, SZQ, SZU...
        Power
        90 kW / 122 HP
        Year of make
        08.17 - 12.21
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI RWD (SZB, SZC, SZD, SZH, SZI, SZO, SZP, SZQ, SZU...
        Power
        103 kW / 140 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI RWD (SZB, SZC, SZD, SZH, SZI, SZO, SZP, SZQ, SZU...
        Power
        130 kW / 177 HP
        Year of make
        07.17 - 06.24
        Link
        more info
      • Vehicle model
        VW CRAFTER Platform/Chassis (SZ_) 2.0 TDI RWD (SZB, SZC, SZD, SZO, SZP, SZQ, SZU, SZV)
        Power
        80 kW / 109 HP
        Year of make
        11.16 - 06.24
        Link
        more info
