Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 182260

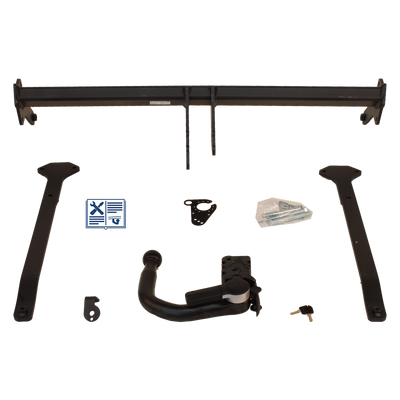

GDW Towbar detachable incl. TowTec electrical set 7pins specific - Mazda

GDW
  • GDW Towbar detachable incl. TowTec electrical set 7pins specific
  • GDW Towbar detachable incl. TowTec electrical set 7pins specific
Art. No.: 182260

GDW Towbar detachable incl. TowTec electrical set 7pins specific - Mazda

  • Towbar variant: Towball inserted from below
  • Towing capacity: 1550 kg
  • Vertical load: 85 kg
  • Electrical set-model: Top Tronic
print Suggest a price
GDW
10% Special offer discount
instead of € 724.98 € 652.48
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2026-07-06
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
GDW
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Top Tronic
Vehicle-specific plug connector
Yes
Towing capacity 1
1.550 kg
Vertical load 2
85 kg
D-value
8,85 kN
Ball head lockable
lockable
Certification
E6-55R-011622
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
25,90 kg
Installation time (in hours) 3
3,5 h
C2 to block light
No
Validation required
No
Parctronic disconnection
Yes
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete detachable towbar set with 7-pin electrics for your vehicle The complete set, consisting of a detachable towbar from GDW and the necessary 7-pin electrical kit, prepares your vehicle optimally for all challenges. The electrics and towbar have been developed to fit your vehicle perfectly. Trailers with a weight of up to 1550 kg can be towed with it. The ball head can be easily removed when not in use and stowed in the trunk.

The vehicle does not have to be presented to an expert after installation of the complete kit. There is also no need to register your vehicle in the vehicle documents . The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with.

This complete set provides you with everything you need, from the smallest screw to the installation instructions, to install the towbar on your .

matching accessory for GDW Towbar detachable incl. TowTec electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • BoldR Group GmbH
    • Am Eichberg Flauer 1
    • 07338 Leutenberg / OT Munschwitz
    • Thuringia
    • Germany
    Address
    • GDW nv
    • Hoogmolenwegel 23
    • 8790 Waregem
    • Vlaams Gewest
    • Belgium
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Mazda CX-30 (DM, DT, ED)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 1.8 SKYACTIV-D
        Power
        85 kW / 116 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 1.8 SKYACTIV-D AWD
        Power
        85 kW / 116 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.0 SKYACTIV-G
        Power
        121 kW / 165 HP
        Year of make
        09.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.0 SKYACTIV-G (DM2W7)
        Power
        114 kW / 155 HP
        Year of make
        09.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.0 SKYACTIV-G (DM2W7)
        Power
        115 kW / 156 HP
        Year of make
        08.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.5 SKYACTIV-G
        Power
        143 kW / 194 HP
        Year of make
        09.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.5 SKYACTIV-G (DM2WL)
        Power
        139 kW / 189 HP
        Year of make
        09.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) 2.5 e-SKYACTIV-G (ED5W)
        Power
        103 kW / 140 HP
        Year of make
        06.24 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-G M Hybrid
        Power
        90 kW / 122 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-G M Hybrid (DM5W, DM6W)
        Power
        110 kW / 150 HP
        Year of make
        01.20 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-G M Hybrid AWD
        Power
        90 kW / 122 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-G M Hybrid AWD (DMEW, DMFW)
        Power
        110 kW / 150 HP
        Year of make
        01.20 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-X M Hybrid (DMFP)
        Power
        132 kW / 179 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) SKYACTIV-X M Hybrid AWD (DM4W7, DMFP)
        Power
        132 kW / 179 HP
        Year of make
        07.19 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) e-SKYACTIV-X M Hybrid
        Power
        137 kW / 186 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Mazda CX-30 (DM, DT, ED) e-SKYACTIV-X M Hybrid AWD
        Power
        137 kW / 186 HP
        Year of make
        06.21 -
        Link
        more info
