Art. No.: 204234

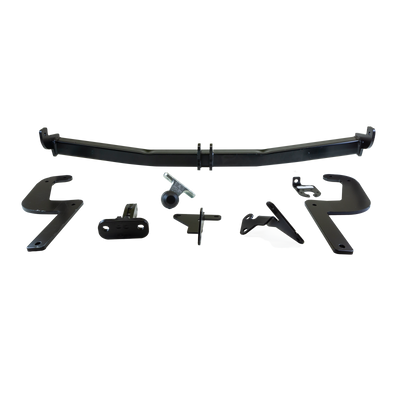

TowCar Towing hitch incl. ECS electrical set 7pins specific - Mercedes-Benz, Nissan, Renault

TowCar

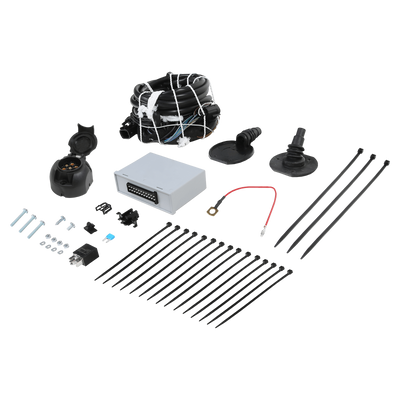

  • TowCar Towing hitch incl. ECS electrical set 7pins specific
  • TowCar Towing hitch incl. ECS electrical set 7pins specific
Art. No.: 204234

TowCar Towing hitch incl. ECS electrical set 7pins specific - Mercedes-Benz, Nissan, Renault

  • Towbar variant: with 2-hole flange ball
  • Towing capacity: 1500 kg
  • Vertical load: 111 kg
  • Electrical set-model: Top Tronic
print
TowCar
You save 20%
RRP € 643.00 € 513.98
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2026-06-28
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
TowCar
Manufacturer electrical set
ECS
Towbar type
Towing hitch
Towbar variant
with 2-hole flange ball
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Top Tronic
Vehicle-specific plug connector
Yes
Towing capacity 1
1.500 kg
Vertical load 2
111 kg
D-value
9,10 kN
Certification
E9*55R-01 2561
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Swap system suitable
No
Weight
28,49 kg
Installation time (in hours) 3
2,5 h
Validation required
No
Parctronic disconnection
Yes
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
Yes
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
not height adjustable
Hole pattern [mm]
90 mm
Hole diameter [mm]
17 mm
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set for your vehicle: with 2-hole flanged ball including 7-pin electrics Consisting of a towbar from TowCar and the necessary 7-pin electrical kit, this complete set prepares your vehicle ideally for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly. You can tow trailers up to 1500 kg.

It is not necessary to present the vehicle to an expert or to register it in the vehicle documents of your vehicle . The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with. The 2-hole flange ball could be detected as an obstacle by car parking assist systems. If your vehicle has a parking assistance system, we recommend that you install a detachable towbar.

The installation instructions for the installation on your are already included in the scope of delivery of the complete set.

matching accessory for TowCar Towing hitch incl. ECS electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • Enganches y Remolques Aragón S.L
    • Pol. Ind. Malpica 77
    • 50016 Zaragoza
    • Aragón
    • Spain
    Address
    • ECS Electronics B.V.
    • Moerlaken 3
    • 4825 AR Breda
    • Noord-Brabant
    • Netherlands
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Mercedes-Benz CITAN Box Body/MPV (W420)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) 1.3 110 (420.653)
        Power
        75 kW / 102 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) 1.3 113 (420.663, 420.665)
        Power
        96 kW / 131 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) 1.5 108 CDI (420.613)
        Power
        55 kW / 75 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) 1.5 110 CDI (420.623, 420.625)
        Power
        70 kW / 95 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) 1.5 112 CDI (420.633, 420.635)
        Power
        85 kW / 116 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Box Body/MPV (W420) eCITAN (420.693, 420.695)
        Power
        90 kW / 122 HP
        Year of make
        09.22 -
        Link
        more info
    • Mercedes-Benz CITAN Tourer (W420)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) 108 CDI (420.713)
        Power
        55 kW / 75 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) 110 (420.753)
        Power
        75 kW / 102 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) 110 CDI (420.723)
        Power
        70 kW / 95 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) 112 CDI (420.733)
        Power
        85 kW / 116 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) 113 (420.763, 420.765)
        Power
        96 kW / 131 HP
        Year of make
        09.21 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz CITAN Tourer (W420) eCITAN (420.793)
        Power
        90 kW / 122 HP
        Year of make
        07.23 -
        Link
        more info
    • Mercedes-Benz T-CLASS MPV (W420)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Mercedes-Benz T-CLASS MPV (W420) T 160 (420.853)
        Power
        75 kW / 102 HP
        Year of make
        05.22 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz T-CLASS MPV (W420) T 160 CDI (420.823)
        Power
        70 kW / 95 HP
        Year of make
        05.22 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz T-CLASS MPV (W420) T 180 (420.863, 420.865)
        Power
        96 kW / 131 HP
        Year of make
        05.22 -
        Link
        more info
      • Vehicle model
        Mercedes-Benz T-CLASS MPV (W420) T 180 CDI (420.833)
        Power
        85 kW / 116 HP
        Year of make
        05.22 -
        Link
        more info
    • Nissan TOWNSTAR Box Body/MPV (XFK)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Nissan TOWNSTAR Box Body/MPV (XFK) 1.3
        Power
        96 kW / 131 HP
        Year of make
        12.21 -
        Link
        more info
      • Vehicle model
        Nissan TOWNSTAR Box Body/MPV (XFK) Electric
        Power
        90 kW / 122 HP
        Year of make
        03.22 -
        Link
        more info
    • Nissan TOWNSTAR MPV (XFK)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Nissan TOWNSTAR MPV (XFK) 1.3
        Power
        96 kW / 131 HP
        Year of make
        12.21 -
        Link
        more info
      • Vehicle model
        Nissan TOWNSTAR MPV (XFK) Electric
        Power
        90 kW / 122 HP
        Year of make
        09.22 -
        Link
        more info
    • Renault KANGOO III Box Body/MPV
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Renault KANGOO III Box Body/MPV 1.3 TCe 100 (FJMA)
        Power
        75 kW / 102 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III Box Body/MPV 1.3 TCe 130 (FJMB)
        Power
        96 kW / 131 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III Box Body/MPV 1.5 Blue dCi 115 (FJAC)
        Power
        85 kW / 116 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III Box Body/MPV 1.5 Blue dCi 75 (FJAA)
        Power
        55 kW / 75 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III Box Body/MPV 1.5 Blue dCi 95 (FJAB)
        Power
        70 kW / 95 HP
        Year of make
        06.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III Box Body/MPV E-Tech Electric (FJJA)
        Power
        90 kW / 122 HP
        Year of make
        04.22 -
        Link
        more info
    • Renault KANGOO III MPV
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Renault KANGOO III MPV Blue dCi 115 (KJAC)
        Power
        85 kW / 116 HP
        Year of make
        10.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III MPV Blue dCi 75 (KJAA)
        Power
        55 kW / 75 HP
        Year of make
        07.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III MPV Blue dCi 95 (KJAB)
        Power
        70 kW / 95 HP
        Year of make
        07.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III MPV E-Tech Electric (KJJA)
        Power
        90 kW / 122 HP
        Year of make
        04.22 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III MPV TCe 100 (KJMA)
        Power
        75 kW / 102 HP
        Year of make
        07.21 -
        Link
        more info
      • Vehicle model
        Renault KANGOO III MPV TCe 130 (KJMB)
        Power
        96 kW / 131 HP
        Year of make
        07.21 -
        Link
        more info
