Art. No.: 204870

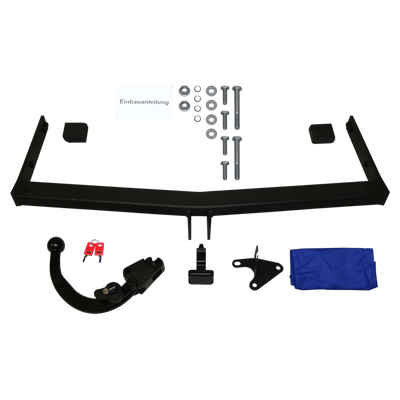

Brink Towbar detachable incl. TowTec electrical set 7pins specific - Seat

Brink
  • Brink Towbar detachable incl. TowTec electrical set 7pins specific
  • Brink Towbar detachable incl. TowTec electrical set 7pins specific
Art. No.: 204870

Brink Towbar detachable incl. TowTec electrical set 7pins specific - Seat

  • Towbar variant: Towball inserted slanted from below
  • Towing capacity: 1400 kg
  • Vertical load: 75 kg
  • Electrical set-model: Data bus
print Suggest a price
Brink
40% Special offer discount
instead of € 526.98 € 316.19
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
Brink
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted slanted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Vehicle-specific plug connector
Yes
Towing capacity 1
1.400 kg
Vertical load 2
75 kg
D-value
8,20 kN
Ball head lockable
lockable
Certification
E11*94/20*7500*00
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Weight
18,94 kg
Installation time (in hours) 3
5,0 h
C2 to block light
No
Validation required
Yes
Parctronic disconnection
Yes
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set for your vehicle: detachable with 7-pin electrics Consisting of a detachable towbar from Brink and the necessary 7-pin electrical kit, this complete set prepares your vehicle ideally for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly. You can use it to tow trailers up to 1400 kg. When not in use, you can simply remove the ball head and store it in the trunk.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. Please note the instructions of the vehicle manufacturer in your vehicle user manual.

From the smallest screw to the installation instructions, this complete set provides you with everything you need to install the towbar on your .
