Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 210609

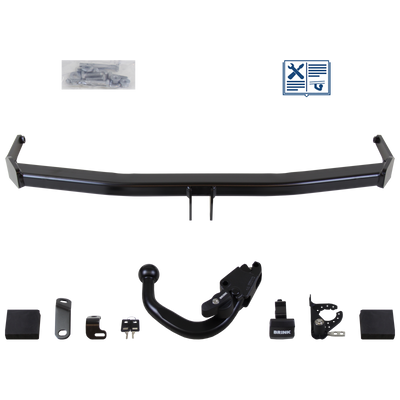

Brink Towbar detachable incl. TowTec electrical set 7pins specific - Seat, VW

Brink
  • Brink Towbar detachable incl. TowTec electrical set 7pins specific
  • Brink Towbar detachable incl. TowTec electrical set 7pins specific
Art. No.: 210609

Brink Towbar detachable incl. TowTec electrical set 7pins specific - Seat, VW

  • Towbar variant: Towball inserted slanted from below
  • Towing capacity: 1200 kg
  • Vertical load: 50 kg
  • Electrical set-model: Data bus
Please note the special features.
print Suggest a price
Brink
You save 15%
RRP € 724.00 € 613.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: GTi, R-Line
Additional notes
  • If coding is possible, however, there is the option to switch the electrical set to active mode at the touch of a button and then to code it so that the assistance systems are automatically switched off during towbar operation.
  • The electrical set is delivered in passive mode. The assistance systems on the vehicle are not switched off in this case and coding is not required.
Manufacturer towbar
Brink
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted slanted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Vehicle-specific plug connector
Yes
Towing capacity 1
1.200 kg
Vertical load 2
50 kg
D-value
7,10 kN
Ball head lockable
lockable
Certification
E11*R55*01*11164
Bumper alteration neccessary
No
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
18,28 kg
Installation time (in hours) 3
3,5 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete detachable towbar set with 7-pin electrics for your vehicle The complete set, consisting of a detachable towbar from Brink and the necessary 7-pin electrical kit, prepares your vehicle optimally for all challenges. The towbar and electrics have been developed to fit your vehicle perfectly. You can use it to tow trailers up to 1200 kg. When not in use, you can simply remove the ball head and store it in the trunk.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with.

From the smallest screw to the installation instructions, this complete set provides you with everything you need to install the towbar on your .

matching accessory for Brink Towbar detachable incl. TowTec electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • Brink Towing Systems B.V.
    • Industrieweg 5
    • 7951 CX Staphorst
    • Overijssel
    • Netherlands
    Address
    • BoldR Group GmbH
    • Am Eichberg Flauer 1
    • 07338 Leutenberg / OT Munschwitz
    • Thuringia
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Seat IBIZA V (KJ1, KJG)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 MPi
        Power
        48 kW / 65 HP
        Year of make
        07.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 MPi
        Power
        55 kW / 75 HP
        Year of make
        01.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 MPi
        Power
        59 kW / 80 HP
        Year of make
        07.18 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 TSI
        Power
        70 kW / 95 HP
        Year of make
        01.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 TSI
        Power
        81 kW / 110 HP
        Year of make
        06.20 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.0 TSI
        Power
        85 kW / 116 HP
        Year of make
        01.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.5 TSI
        Power
        110 kW / 150 HP
        Year of make
        07.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.6 SRE
        Power
        81 kW / 110 HP
        Year of make
        05.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.6 TDI
        Power
        59 kW / 80 HP
        Year of make
        11.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.6 TDI
        Power
        70 kW / 95 HP
        Year of make
        09.17 -
        Link
        more info
      • Vehicle model
        Seat IBIZA V (KJ1, KJG) 1.6 TDI
        Power
        85 kW / 115 HP
        Year of make
        12.17 -
        Link
        more info
    • VW POLO VI (AW1, BZ1, AE1)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.0 MPi
        Power
        59 kW / 80 HP
        Year of make
        09.18 -
        Link
        more info
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.0 TGI
        Power
        66 kW / 90 HP
        Year of make
        09.17 -
        Link
        more info
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.0 TSI
        Power
        70 kW / 95 HP
        Year of make
        06.17 -
        Link
        more info
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.0 TSI
        Power
        81 kW / 110 HP
        Year of make
        07.20 -
        Link
        more info
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.0 TSI
        Power
        85 kW / 116 HP
        Year of make
        09.17 -
        Link
        more info
      • Vehicle model
        VW POLO VI (AW1, BZ1, AE1) 1.6 MSi
        Power
        81 kW / 110 HP
        Year of make
        09.17 -
        Link
        more info
