Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 185170-42985-1

AUTO-HAK Towbar detachable incl. ECS electrical set 7pins specific - VOLVO V40 Cross Country

AUTO-HAK
  • AUTO-HAK Towbar detachable incl. ECS electrical set 7pins specific
  • AUTO-HAK Towbar detachable incl. ECS electrical set 7pins specific
Art. No.: 185170-42985-1

AUTO-HAK Towbar detachable incl. ECS electrical set 7pins specific - VOLVO V40 Cross Country

  • Towbar variant: Towball inserted from the rear
  • Towing capacity: 1500 kg
  • Vertical load: 75 kg
  • Electrical set-model: Summer
  • suitable for VOLVO V40 Cross Country
  • year of make 10.12 - 08.19
print Suggest a price
AUTO-HAK
You save 23%
RRP € 621.00 € 474.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
AUTO-HAK
Manufacturer electrical set
ECS
Towbar type
detachable
Towbar lock
Lever system
Towbar variant
Towball inserted from the rear
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Summer
Vehicle-specific plug connector
Yes
Towing capacity 1
1.500 kg
Vertical load 2
75 kg
D-value
9,80 kN
Ball head lockable
not lockable
Certification
E20-55R-01 4931
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
15,57 kg
Installation time (in hours) 3
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

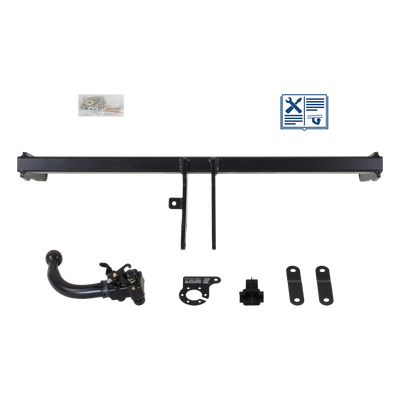

Complete detachable towbar set with 7-pin electrical kit for your VOLVO V40 Cross Country

Your vehicle will be optimally equipped to meet all challenges with this complete set, comprising a detachable towbar from AUTO-HAK and the necessary 7-pin electrical kit. The electrical kit and towbar were developed specifically for your VOLVO V40 Cross Country. Trailers with a weight of up to 1500 kg can be towed with them. The ball head can be easily removed and stored in the boot when not in use.

The vehicle does not need to be inspected by an expert after the complete set has been installed. There is also no need for an entry in the vehicle documentation of your VOLVO V40 Cross Country . The instructions of the vehicle manufacturer in your vehicle user manual must be complied with.

This complete set provides you with everything you need, from the smallest screw to the installation instructions, to install the towbar on your VOLVO V40 Cross Country.

matching accessory for AUTO-HAK Towbar detachable incl. ECS electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    suitable vehicles

    Volvo is a Swedish commercial-vehicle group and was founded in 1927. Today, Volvo produces mainly passenger cars, buses, trucks and construction machinery. The headquarters of Volvo are in Gothenburg and the company employs over 100,000 people.

    • Volvo V40 Cross Country (526)
      • Vehicle model
        Power
        Year of make
      • Vehicle model
        Volvo V40 Cross Country (526) D2
        Power
        84 kW / 114 HP
        Year of make
        10.12 - 12.16
      • Vehicle model
        Volvo V40 Cross Country (526) D2
        Power
        88 kW / 120 HP
        Year of make
        02.15 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) D3
        Power
        110 kW / 150 HP
        Year of make
        04.15 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) D3
        Power
        110 kW / 150 HP
        Year of make
        10.12 - 03.15
      • Vehicle model
        Volvo V40 Cross Country (526) D4
        Power
        130 kW / 177 HP
        Year of make
        10.12 - 12.14
      • Vehicle model
        Volvo V40 Cross Country (526) D4
        Power
        140 kW / 190 HP
        Year of make
        05.14 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) D4 Polestar
        Power
        147 kW / 200 HP
        Year of make
        05.14 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T3
        Power
        112 kW / 152 HP
        Year of make
        02.15 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T3
        Power
        112 kW / 152 HP
        Year of make
        04.15 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T4
        Power
        132 kW / 180 HP
        Year of make
        10.13 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T4
        Power
        140 kW / 190 HP
        Year of make
        08.15 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T4 AWD
        Power
        132 kW / 180 HP
        Year of make
        07.13 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T4 AWD
        Power
        140 kW / 190 HP
        Year of make
        05.14 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T4 GTDi
        Power
        132 kW / 180 HP
        Year of make
        10.12 - 12.16
      • Vehicle model
        Volvo V40 Cross Country (526) T5
        Power
        157 kW / 214 HP
        Year of make
        02.13 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T5
        Power
        183 kW / 249 HP
        Year of make
        01.14 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T5
        Power
        187 kW / 254 HP
        Year of make
        10.12 - 12.16
      • Vehicle model
        Volvo V40 Cross Country (526) T5 AWD
        Power
        157 kW / 214 HP
        Year of make
        03.13 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T5 AWD
        Power
        180 kW / 245 HP
        Year of make
        05.14 - 08.19
      • Vehicle model
        Volvo V40 Cross Country (526) T5 AWD
        Power
        183 kW / 249 HP
        Year of make
        01.14 - 12.15
      • Vehicle model
        Volvo V40 Cross Country (526) T5 AWD
        Power
        187 kW / 254 HP
        Year of make
        10.12 - 12.16
      • Vehicle model
        Volvo V40 Cross Country (526) T5 Polestar AWD
        Power
        186 kW / 253 HP
        Year of make
        01.15 - 08.19
    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • ECS Electronics B.V.
    • Moerlaken 3
    • 4825 AR Breda
    • Noord-Brabant
    • Netherlands
    Address
    • Auto-Hak Sp. z o.o.
    • ul.Sloneczna 16K
    • 76-200 Slupsk
    • Województwo pomorskie
    • Poland
