Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 137614-10459-2

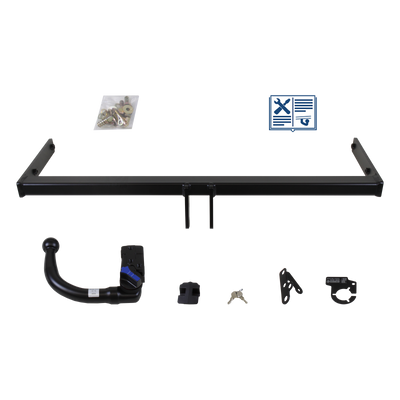

AUTO-HAK Towbar detachable Towball inserted from below - AUDI A3 Sportback

AUTO-HAK
  • AUTO-HAK Towbar detachable Towball inserted from below
Art. No.: 137614-10459-2

AUTO-HAK Towbar detachable Towball inserted from below - AUDI A3 Sportback

  • Towing capacity: 2035 kg
  • Vertical load: 85 kg
  • suitable for AUDI A3 Sportback
  • Year of make 09.12 - 10.20
Please note the special features.
print Suggest a price
AUTO-HAK
€ 436.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
AUDI A3 Sportback towbar option gallery

The "Option gallery" tab makes it even easier to get an idea what your new towing package looks at your AUDI A3 Sportback. You'll see before and after images, with or without the towbar installed. Images with the ball head detached are shown for detachable towbars. See for yourself whether the cut-out at the bumper (if provided) is visible at your AUDI A3 Sportback.

Order the complete kit now
Data Sheet
Special features
  • Model exclusion: S3, RS3, e-tron, g-tron
Additional notes
  • it is possible that the engine cooling system of the vehicle is not equipped for operation of a trailer; in such cases it may be necessary to replace parts of the cooling system (e.g. fans)
  • we will be happy to to help you check whether your vehicle is adequately equipped. Please contact us and have your chassis number on hand
Manufacturer
AUTO-HAK
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,0 h
Vertical load 2
85 kg
Towing capacity 3
2.035 kg
D-value
10,30 kN
Certification
E20-55R-01 4920
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
17,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

Top class manufacturer AUTO-HAK recommends this towbar especially for your AUDI A3 Sportback . In the field of detachable horizontal towbar systems with automatic locking feature, the Auto Hak V2 is in a leading position for the AUDI A3 Sportback . The high durability, good design and compelling ease of use make the Auto Hak V2 system an excellent choice.

This anti-theft towbar comes with an integrated lock. Towing capacity up to 2035 kg and a vertical load of 85 kg characterize this towbar. A fatigue strength of 10.3 kN is listed for AUTO-HAK.

A small cut in the bumper is needed to fit this towbar. A cutting template or cutting dimensions can be found in the installation instructions.

In our category "bike carriers" you can find bike carriers that can be securely attached to this AUDI A3 Sportback towbar.

The detailed installation instructions from the manufacturer AUTO-HAK are included with this product. This towbar has a powder coating. During this modern surface coating process, a plastic powder coating is permanently applied to the metal surface. The result is high durability and excellent protection against corrosion.

Carefully read the instructions and specific indications of the vehicle manufacturer when fitting the towbar. Such information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

In motor sport, Audi, founded in 1909, is a premium car manufacturer and a highly successful brand. Audi is a part of the AUDI group. Audi, Seat and Lamborghini are the sports oriented brands of the VW group.

  • Audi A3 Sportback (8VA, 8VF)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.0 TFSI
      Power
      85 kW / 115 HP
      Year of make
      07.16 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.2 TFSI
      Power
      77 kW / 105 HP
      Year of make
      05.13 - 05.15
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.2 TFSI
      Power
      81 kW / 110 HP
      Year of make
      05.14 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.4 TFSI
      Power
      90 kW / 122 HP
      Year of make
      09.12 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.4 TFSI
      Power
      92 kW / 125 HP
      Year of make
      05.14 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.4 TFSI
      Power
      103 kW / 140 HP
      Year of make
      03.13 - 11.14
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.4 TSI
      Power
      110 kW / 150 HP
      Year of make
      05.14 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.5 TFSI
      Power
      110 kW / 150 HP
      Year of make
      05.17 - 10.18
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.6 TDI
      Power
      77 kW / 105 HP
      Year of make
      10.12 - 12.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.6 TDI
      Power
      81 kW / 110 HP
      Year of make
      09.13 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.6 TDI
      Power
      85 kW / 115 HP
      Year of make
      02.17 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.6 TDI quattro
      Power
      81 kW / 110 HP
      Year of make
      05.15 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.8 TFSI
      Power
      132 kW / 180 HP
      Year of make
      09.12 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 1.8 TFSI quattro
      Power
      132 kW / 180 HP
      Year of make
      05.13 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 45 TFSI
      Power
      162 kW / 220 HP
      Year of make
      02.15 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI
      Power
      81 kW / 110 HP
      Year of make
      05.13 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI
      Power
      100 kW / 136 HP
      Year of make
      05.13 - 08.16
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI
      Power
      105 kW / 143 HP
      Year of make
      03.13 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI
      Power
      110 kW / 150 HP
      Year of make
      09.12 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI
      Power
      135 kW / 184 HP
      Year of make
      05.13 - 07.18
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI quattro
      Power
      110 kW / 150 HP
      Year of make
      02.13 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TDI quattro
      Power
      135 kW / 184 HP
      Year of make
      05.13 - 07.18
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TFSI
      Power
      140 kW / 190 HP
      Year of make
      05.16 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 2.0 TFSI quattro
      Power
      140 kW / 190 HP
      Year of make
      05.16 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 30 TDI
      Power
      85 kW / 115 HP
      Year of make
      07.18 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 30 TFSI
      Power
      85 kW / 116 HP
      Year of make
      07.18 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 35 TFSI
      Power
      110 kW / 150 HP
      Year of make
      10.18 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 40 TDI quattro
      Power
      135 kW / 184 HP
      Year of make
      07.18 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 40 TFSI
      Power
      140 kW / 190 HP
      Year of make
      07.18 - 10.20
    • Vehicle model
      Audi A3 Sportback (8VA, 8VF) 40 TFSI quattro
      Power
      140 kW / 190 HP
      Year of make
      07.18 - 10.20
