Art. No.: 156529

Bike carrier Atlas 3 Premium Blue

Art. No.: 156529

Bike carrier Atlas 3 Premium Blue

  • for 3 bicycles
  • mounting on the towbar
  • load capacity: 60 kg
  • foldable
Want to take your bike on holiday? With the family friendly Hapro Atlas 3 Premium Blue that is no longer a problem. Simply attach it to the towing hook of your car with one quick step and secure it - done!
Hapro
You save 20%
RRP € 511.00 € 407.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Technical details - Bike carrier
Manufacturer
Hapro
Description
Atlas 3 Premium Blue
Nr. Of bikes
3
Colour
Black
Material
Steel
Weight
18,12 kg
Load
60 kg
Vertical load for max. loading capacity
78.1 kg
min. wheelbase [mm]
530 mm
max. wheelbase [mm]
1190 mm
Carrier lockable
Yes
Bicycles lockable
Yes
premounted
No
Bicycle attachment
Frame
Tyre attachment
Tire mounting with belt
Suitable for electric bicycles
No
Attachment type
on to the towbar
Attachment
with clamps
foldable
Yes
foldable
No
Plug connector
13 pins
max. bicycle tyre width [mm]
71 mm
min. bicycle frame diameter [mm]
20 mm
max. bicycle frame diameter [mm]
72 mm
Distance between wheel rails [mm]
180 mm
Recommended speed (km/h) 1
130 km/h
1 Please aware laws.
Product details

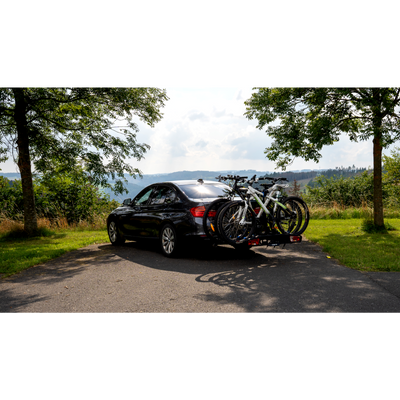

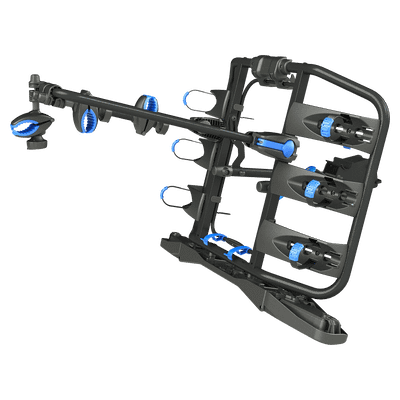

The Hapro Atlas 3 Premium Blue offers convenience, stability and reliable safety. It can be attached to all towing hooks in next to no time.

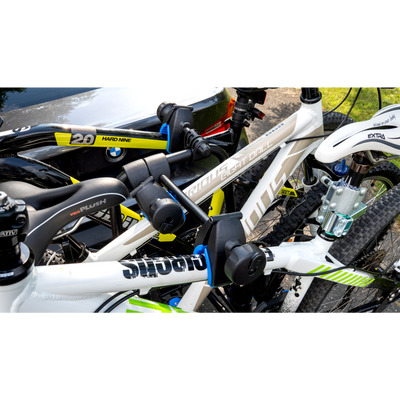

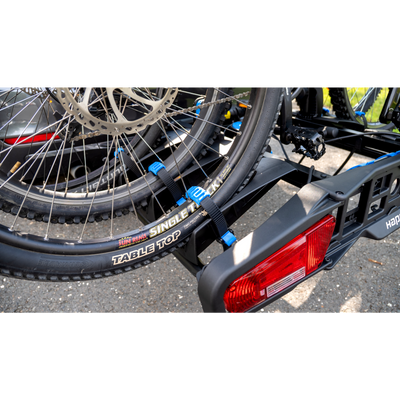

The Hapro Atlas 3 Premium Blue holds 3 bikes and a maximum additional load of 60 kg. The assembly is child's play: simply attach it to the towing hook and secure with a clamping lever. Flexibel frame holders securely attach the bikes to the mounting bracket, located between the first and second bike. Safety belts fasten the wheels to the adjustable wheel racks. Thanks to the position of the mounting bracket the bikes can be conveniently attached directly to the bike carrier.

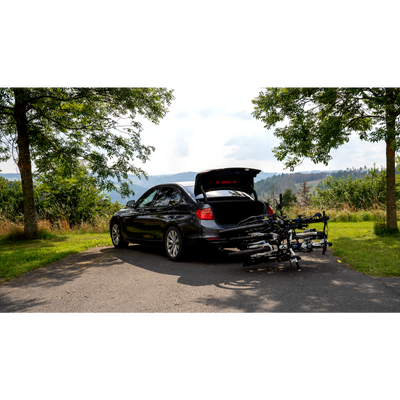

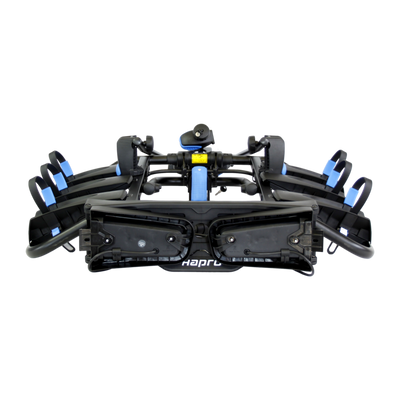

The robust Hapro Atlas 3 Premium Blue offers reliable theft protection for bike and carrier thanks to the integrated locks. The three staged fold down mechanism of up to 60° enables easy access to the trunk of most cars - even when the bikes are mounted to the carrier. Should the trunk not open sufficiently wide, the optional extension kit allows the angle to be folded to 80°. The extension kit can be found under matching accessories. Simply fold up the bike carrier if you are not using it. Thanks to its compact measurements, it requires minimal space.

Buy the Hapro Atlas 3 Premium Blue to take your bikes on holiday with you and stay mobile wherever you are.

The licence plate holder complies with the European standard (520 mm x 110 mm).
