Art. No.: 178875

Bike carrier Atlas Active I - 13P

Hapro eBike
  • Bike carrier Atlas Active I - 13P
  • Bike carrier Atlas Active I - 13P
  • Bike carrier Atlas Active I - 13P
  • Bike carrier Atlas Active I - 13P
Art. No.: 178875

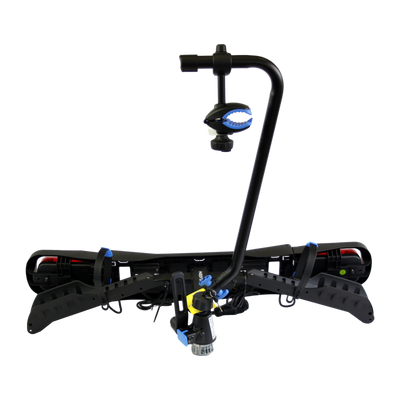

Bike carrier Atlas Active I - 13P

  • for 1 bicycle
  • mounting on the towbar
  • load capacity: 30 kg
Strong, safe and compact – that is the new Hapro Atlas Active series. This carrier has everything you need: simple assembly, easy handling and good quality at a top price.
Hapro
You save 28%
RRP € 303.00 € 217.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Technical details - Bike carrier
Manufacturer
Hapro
Description
Atlas Active I - 13P
Nr. Of bikes
1
Weight
7,80 kg
Load
30 kg
Vertical load for max. loading capacity
37.8 kg
min. wheelbase [mm]
690 mm
max. wheelbase [mm]
1140 mm
Carrier lockable
Yes
Bicycles lockable
Yes
premounted
No
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Attachment type
on to the towbar
Attachment
with clamps
foldable
No
foldable
No
Plug connector
13 pins, 7 pins
max. bicycle tyre width [mm]
76 mm
min. bicycle frame diameter [mm]
20 mm
max. bicycle frame diameter [mm]
72 mm
Recommended speed (km/h) 1
130 km/h
1 Please aware laws.
Product details

The Hapro Atlas Active I is designed for 1 bicycle and a maximum payload of 30 kg. It is also perfect for an excursion with the electric bike.

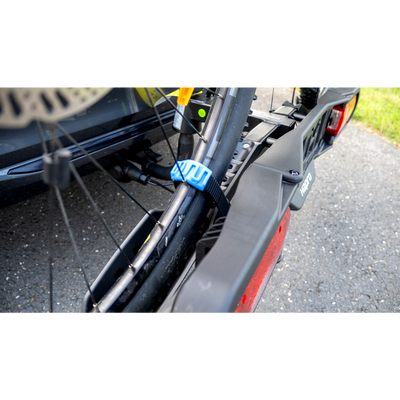

Thanks to the wide tyre holders, you can easily transport tyres up to 7.6 cm wide. With the help of tension bands, the bicycle is securely fixed at the tyre with a ratchet fastening. To protect the rims you will find special rim protection rubbers on the tension bands.

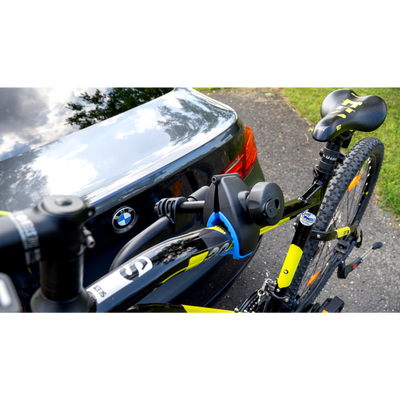

On the mounting bracket there is also a lockable frame holder, with which the bicycle is attached to the frame and is protected against theft.

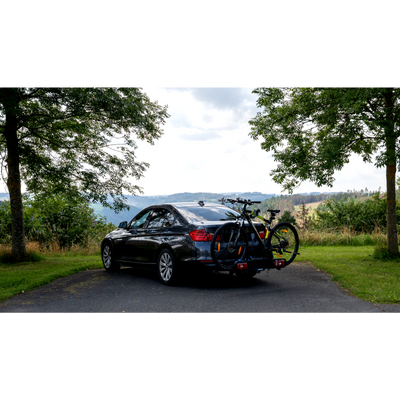

The bicycle carrier is simply placed on the towbar and conveniently fastened.

The integrated locks on the Hapro Atlas Active offer reliable theft protection for bicycle and carrier. When not in use, the bike carrier's mounting bracket can be folded up and therefore takes up less space.

This bike carrier is fitted with a 13-pin plug. Please note that, in some EU countries, a 13-pin electrical set is also required when using a bike carrier (for instance, in Germany and Austria). Make transporting your bike easier than ever – with the Hapro Atlas Active I.
