Art. No.: 178879

Bike carrier Atlas Active IV - 13P

Hapro eBike
  • Bike carrier Atlas Active IV - 13P
  • Bike carrier Atlas Active IV - 13P
  • Bike carrier Atlas Active IV - 13P
  • Bike carrier Atlas Active IV - 13P
Art. No.: 178879

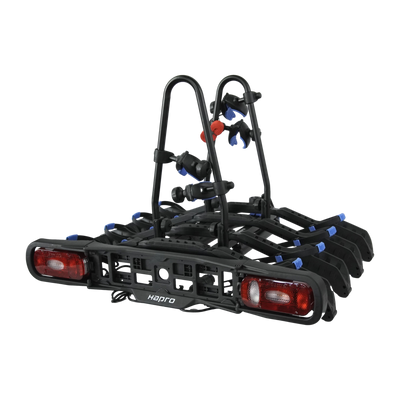

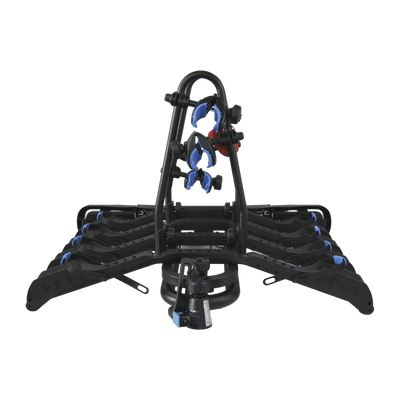

Bike carrier Atlas Active IV - 13P

  • for 4 bicycles
  • mounting on the towbar
  • load capacity: 60 kg
Strong, safe and compact – that is the new Hapro Atlas Active series. This carrier has everything you need: simple assembly, easy handling and good quality at a top price.
Hapro
You save 23%
RRP € 574.00 € 437.99
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2024-04-10
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Technical details - Bike carrier
Manufacturer
Hapro
Description
Atlas Active IV - 13P
Nr. Of bikes
4
Weight
23,60 kg
Load
60 kg
Vertical load for max. loading capacity
83.6 kg
min. wheelbase [mm]
690 mm
max. wheelbase [mm]
1140 mm
Carrier lockable
Yes
Bicycles lockable
Yes
premounted
No
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Attachment type
on to the towbar
Attachment
with clamps
foldable
Yes
foldable
No
Plug connector
13 pins, 7 pins
max. bicycle tyre width [mm]
76 mm
min. bicycle frame diameter [mm]
20 mm
max. bicycle frame diameter [mm]
72 mm
Distance between wheel rails [mm]
200 mm
Recommended speed (km/h) 1
130 km/h
1 Please aware laws.
Product details

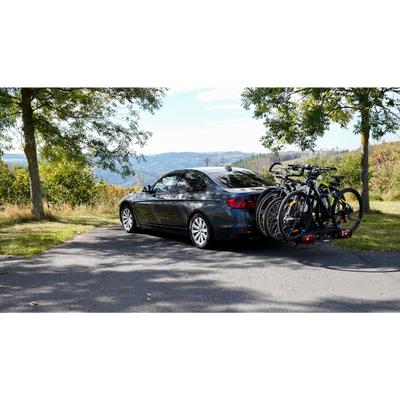

The Hapro Atlas Active II is designed for 4 bikes and a maximum payload of 60 kg. It is also perfect for an excursion with the electric bike.

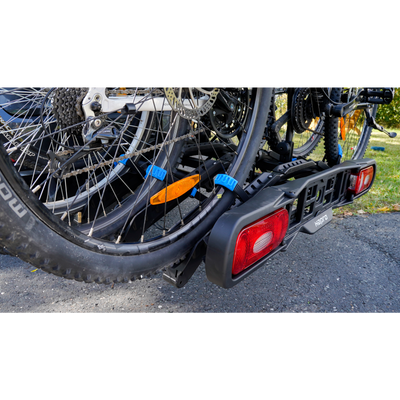

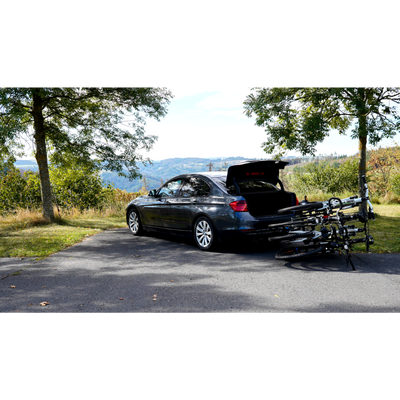

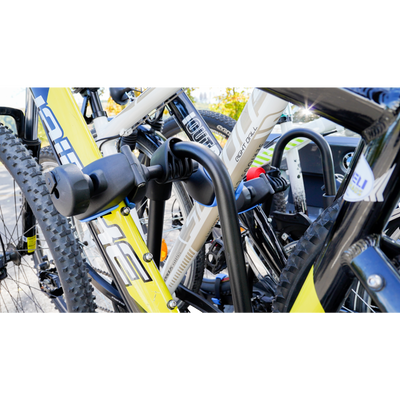

Thanks to the wide tyre holders, you can easily transport tyres up to 7.6 cm wide. With the help of tension bands, the bicycles are securely fixed at the tyre with a ratchet fastening. To protect the rims you will find special rim protection rubbers on the tension bands. On the mounting bracket there are also lockable frame holders, with which the bicycles are attached to the frame and are protected against theft. The bicycle carrier has a fold-down mechanism that allows access to the car boot even when the bicycles are mounted on the carrier.

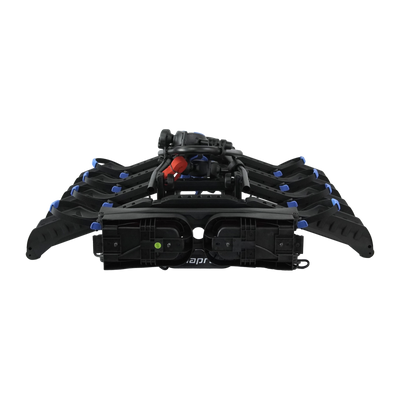

The integrated locks on the Hapro Atlas Active offer reliable theft protection for bicycles and carrier. When not in use, the bike carrier's mounting bracket can be folded up and therefore takes up less space. The bicycle carrier is simply placed on the towbar and conveniently fastened.

Make transporting your bike easier than ever – with the Hapro Atlas Active.
