Art. No.: 178880

Bike carrier Atlas Premium Xfold I

Hapro eBike
  • Bike carrier Atlas Premium Xfold I
  • Bike carrier Atlas Premium Xfold I
  • Bike carrier Atlas Premium Xfold I
  • Bike carrier Atlas Premium Xfold I
  • Bike carrier Atlas Premium Xfold I
  • Bike carrier Atlas Premium Xfold I
Art. No.: 178880

Bike carrier Atlas Premium Xfold I

  • for 1 bicycles, expandable to 2 bicycles
  • mounting on the towbar
  • load capacity: 30 kg
  • foldable
  • foldable
A modern, high quality and foldable bicycle carrier – the new product from HAPRO is perfectly suited for all your excursion plans.
Hapro
You save 24%
RRP € 458.00 € 347.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Technical details - Bike carrier
Manufacturer
Hapro
Description
Atlas Premium Xfold I
Nr. Of bikes
1
can be enhanced to
2 bikes
Weight
14,30 kg
Load
30 kg
Vertical load for max. loading capacity
44.3 kg
min. wheelbase [mm]
780 mm
max. wheelbase [mm]
1290 mm
Carrier lockable
Yes
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Attachment type
on to the towbar
Attachment
with clamps
foldable
Yes
foldable
Yes
Plug connector
13 pins, 7 pins
max. bicycle tyre width [mm]
100 mm
min. bicycle frame diameter [mm]
20 mm
max. bicycle frame diameter [mm]
72 mm
Recommended speed (km/h) 1
130 km/h
1 Please aware laws.
Product details

The new, innovative Atlas Premium Xfold I bicycle carrier from Hapro is designed for 1 bicycle or 1 e-bike and a maximum payload of 30 kg.

Due to the wide tyre holders you can easily transport tyres up to 10 cm wide. With the help of tension bands, the bicycle is securely fixed at the tyre with a ratchet fastening. To protect the rims you will find special rim protection rubbers on the tension bands.

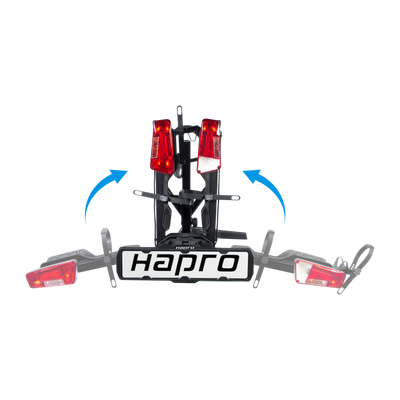

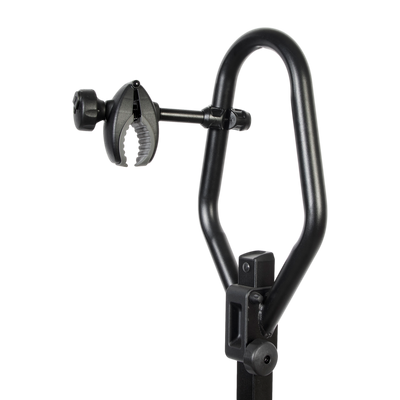

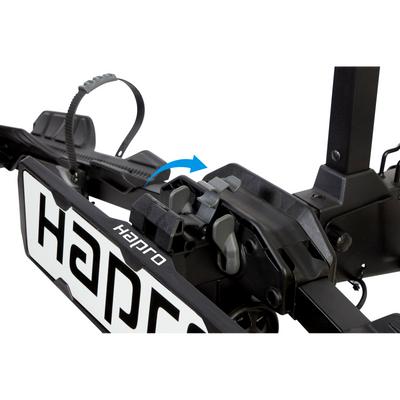

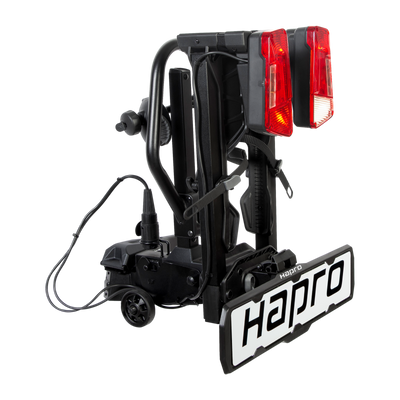

On the mounting bracket there is a lockable frame holder, with which the bicycle is securely fastened to the frame and protected against theft. The integrated locks on the Hapro Atlas Premium Xfold I offer reliable theft protection for bicycle and carrier. When not in use, the bike carrier can be completely folded up and therefore takes up little space.

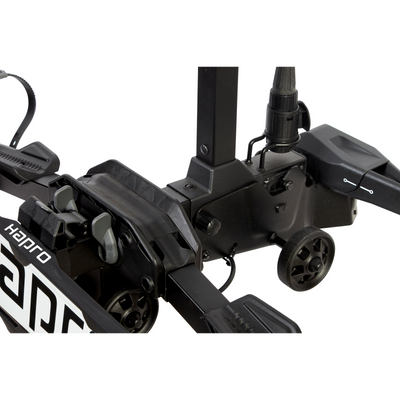

The Hapro Atlas Premium Xfold I can be easily rolled from A to B thanks to the wheels attached to the carrier. There is no need to carry it to the vehicle! The bicycle carrier is simply placed on the towbar and attached with the new fastening system in just a few steps.

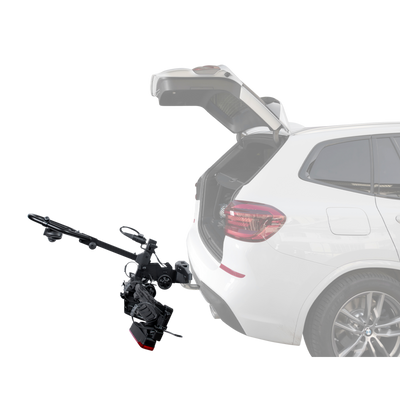

The fold-down mechanism means that the car boot in most cars is still accessible, even if the bicycle is fitted on the bike carrier. This bike carrier is fitted with a 13-pin plug. Please note that, in some EU countries, a 13-pin electrical set is also required when using a bike carrier (for instance, in Germany and Austria).

Make transporting your bike easier than ever – with the Hapro Atlas Premium Xfold I

matching accessory for Bike carrier Atlas Premium Xfold I (8)
  • Storage bag Hapro Storage bag

    for bicycle carrier Hapro XFold I, Opening at the top, tear-resistant polyester fabric, Colour: black, Velcro strip on the bottom

    € 51.99
  • Extension Bike Carrier Hapro Extension

    for 2nd bicycle Hapro Xfold I, for a 3rd bicycle Hapro Xfold II + Xfold II 2.0, max. payload: 15 kg

    € 143.99
  • Wall mounting for bicycle carriers Wall mounting

    max. additional load: 30 kg

    € 29.99
  • Loading ramp for bicycle carrier Hapro Atlas Premium Xfold Loading ramp

    for easy loading and unloading of heavy bicycles, spares your back

    € 53.99
  • Bike transport protection Eufab Bike transport protection

    6-piece, , , ,

    € 27.99
  • Wall mounting for bicycle carriers Wall mounting

    max. additional load: 50 kg

    € 22.99
  • Frame adapter Menabo Frame adapter

    For bikes with special frames

    € 49.00
    € 36.99
  • Frame adapter Thule 982 Frame adapter

    For bicycles with special frames

    € 47.99
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers
