Art. No.: 178881

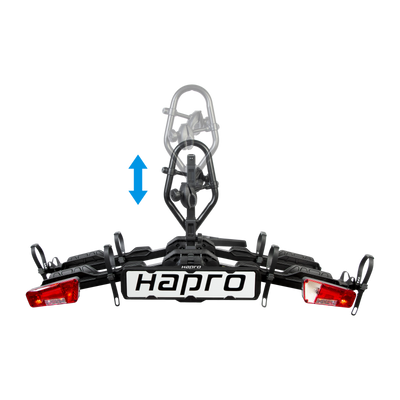

Bike carrier Hapro Atlas Premium XFold II 3.0

Art. No.: 178881

Bike carrier Hapro Atlas Premium XFold II 3.0

  • for 2 bicycles, expandable to 3 bicycles
  • mounting on the towbar
  • load capacity: 60 kg
  • foldable
  • foldable
A modern, high quality and foldable bicycle carrier – the new product from HAPRO is perfectly suited for all your excursion plans.
Hapro
€ 475.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Hapro
Description
Atlas Premium Xfold II
Nr. Of bikes
2
can be enhanced to
3 bikes
Expansion set for third bicycle 1
Colour
Black/Grey
Material
Steel, Plastic, Aluminium
Weight
20,00 kg
Load
60 kg
Vertical load for max. loading capacity
80 kg
min. wheelbase [mm]
780 mm
max. wheelbase [mm]
1290 mm
lockable
Yes
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Fastening
on to the towbar
Fastening system
with clamps
foldable
Yes
foldable
Yes
Plug connector
13 pins, 7 pins
max. bicycle tyre width [mm]
100 mm
min. bicycle frame diameter [mm]
20 mm
max. bicycle frame diameter [mm]
72 mm
Distance between wheel rails [mm]
300 mm
Recommended speed (km/h) 2
130 km/h
1 Not included.
2 Please aware laws.
Product details

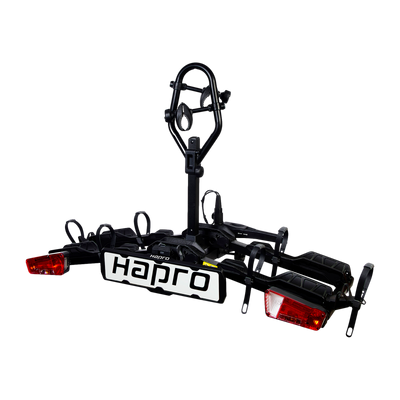

The new, innovative Hapro Atlas Premium XFold II bike carrier is designed for 2 bicycles or 2 e-bikes and a maximum payload of 60 kg.

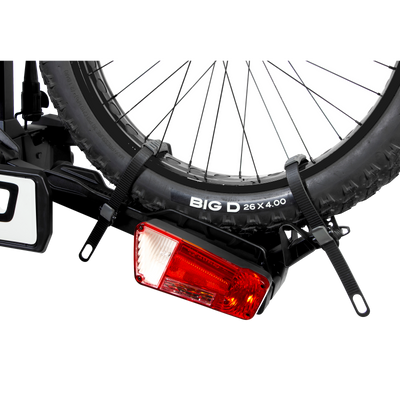

The wide wheel holders accommodate tyres up to 10 cm wide. Ratchet straps secure the bicycles by the tyres, while special rim-protection pads protect the rims.

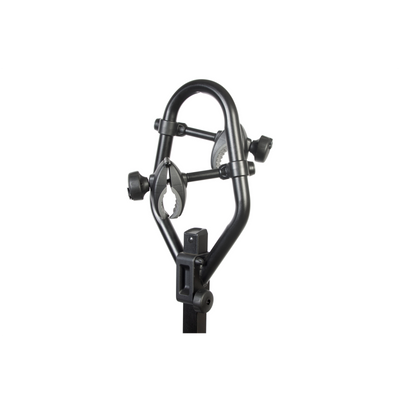

Because the support frame is positioned between the two bicycles, they are easy to attach. Lockable frame holders on the support frame additionally secure the bicycles by the frame and protect them against theft.

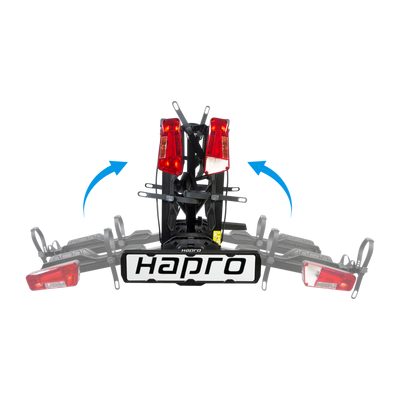

The integrated locks provide reliable theft protection for both bicycles and carrier. When not in use, the carrier folds completely for compact storage.

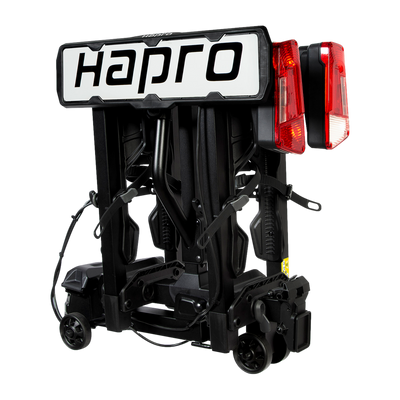

Integrated wheels make the Hapro Atlas Premium XFold II easy to roll from A to B, eliminating the need to carry it to the vehicle. Simply place it on the tow bar and secure it in a few steps using the new fastening system.

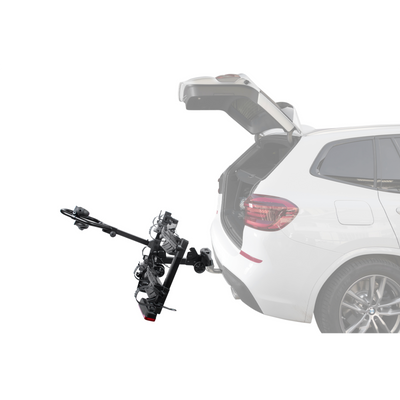

The tilt mechanism provides access to the boot on most passenger cars even with bicycles mounted.

This bike carrier has a 13-pin plug. Please note that in some EU countries a 13-pin electrical kit is mandatory when using a bike carrier (e.g. Germany and Austria).

Make transporting your bike easier than ever with the Hapro Atlas Premium XFold II

Hapro continues to invest in its carrier products and has improved the Atlas Premium XFold II. The new version is called Atlas Premium XFold II 3.0

From May 2026, the bike carrier will be supplied in an improved version.

New features and changes:
• fully pre-assembled, rear lights no longer need to be installed separately

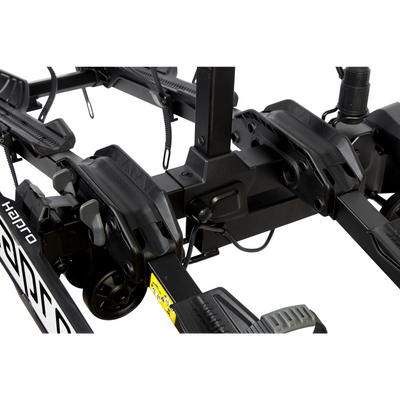

• Reinforced, newly designed handle for the tilting mechanism
• Reinforced internal tilting mechanism

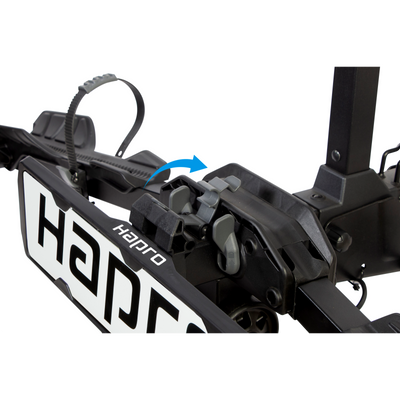

• New double push-button locking system for wheel holders
• T-handle for improved grip when adjusting the frame clamp
