Art. No.: 182798

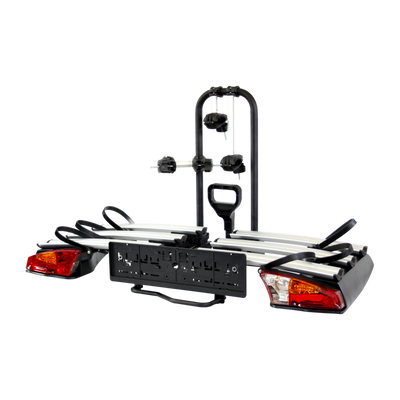

Bike carrier Antares 3

Menabo eBike
  • Bike carrier Antares 3
  • Bike carrier Antares 3
  • Bike carrier Antares 3
  • Bike carrier Antares 3
  • Bike carrier Antares 3
  • Bike carrier Antares 3
  • Bike carrier Antares 3
Art. No.: 182798

Bike carrier Antares 3

  • for 3 bicycles
  • mounting on the towbar
  • Payload: 60 kg
  • removable
  • foldable

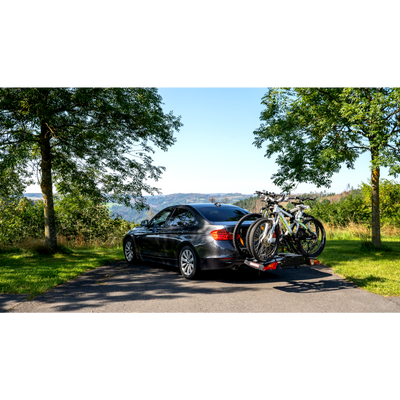

The Antares 3 can be quickly mounted onto the towbar and enables convenient transport of 3 bikes.
Menabo
You save 50%
RRP € 799.00 € 399.99
incl. 19% VAT plus shipping costs
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Menabo
Description
Antares 3
Nr. Of bikes
3
Colour
Black/Silver
Material
Steel, Aluminium
Weight
18,40 kg
Load
60 kg
Vertical load for max. loading capacity
78.4 kg
max. wheelbase [mm]
1130 mm
Carrier lockable
Yes
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Attachment type
on to the towbar
Attachment
with clamps
foldable
Yes
foldable
Yes
Plug connector
13 pins
max. bicycle tyre width [mm]
110 mm
min. bicycle frame diameter [mm]
30 mm
max. bicycle frame diameter [mm]
70 mm
min. bicycle tyre size [inch]
22 "
max. bicycle tyre size [inch]
29 "
Distance between wheel rails [mm]
180 mm
detachable holding brackets
Yes
Recommended speed (km/h) 1
130 km/h
1 Please aware laws.
Product details

Safe and easy to fit – the Antares 3 bike carrier

The Antares 3 is a modern, stable and safe bike carrier. The carrier can be easily mounted onto just about any towbar and can be folded up and stored in a way that takes up very little space when not in use. It is designed for a maximum load of 60 kg and can therefore also be used to transport e-bikes.

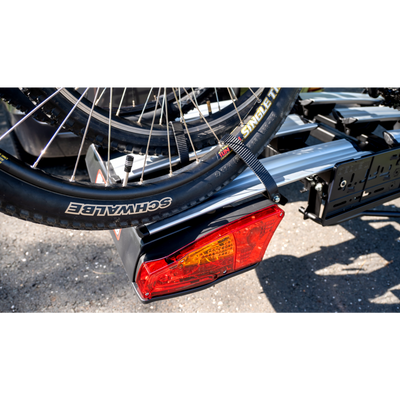

The Antares 3 is fitted using a tension lever, which fixes the carrier firmly to the vehicle once it has been tightened. The bikes are securely mounted in the wheel tracks thanks to the flexible frame holder on the mounting bracket and using the tensioning straps. The extra-long tensioning straps and wide rails also make it possible to transport fat bikes with wide tyres.

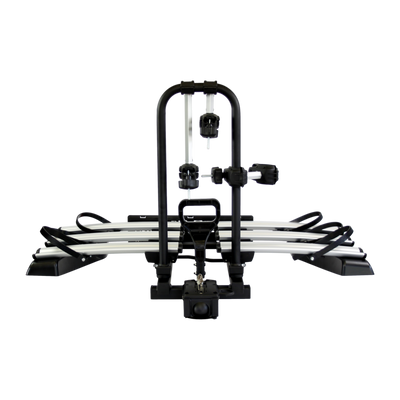

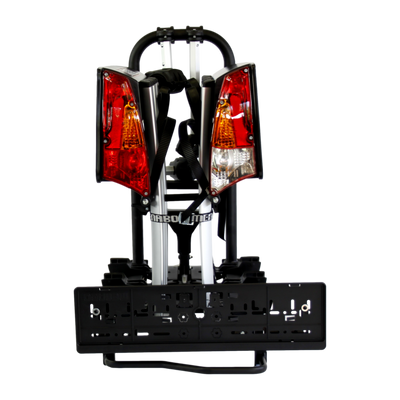

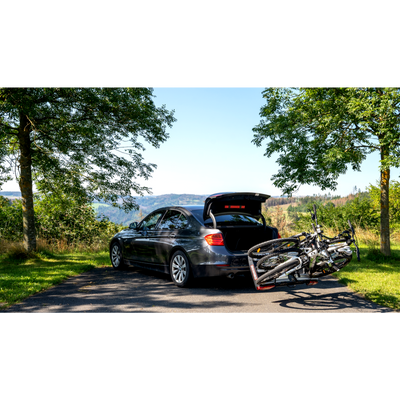

The Antares 3 has a fold-down mechanism with a foot pedal that allows access to the car boot even when bikes are mounted on the carrier. Integrated locks on the holding brackets and on the carrier itself secure the bikes and the carrier to the vehicle.

This bike carrier is fitted with a 13-pin plug. Please note that, in some EU countries, a 13-pin electrical set is a mandatory requirement when using a bike carrier (for instance, in Germany and Austria).

Order now and enjoy the reliability and easy handling of the Antares bike carrier from Menabo.

The licence plate holder complies with the European standard (520 mm x 110 mm).
