Art. No.: 196437

Bike carrier LAS BC260 black Drawbar

LAS eBike
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
  • Bike carrier LAS BC260 black Drawbar
Art. No.: 196437

Bike carrier LAS BC260 black Drawbar

  • for 2 bicycles
  • mounting on the drawbar
  • payload: 60 kg
  • with sliding system
  • optionally removable
Thanks to modern aluminium profile rails, the drawbar bicycle carrier can be extended by approx. 34.5 cm, so that you can easily reach the trailer's storage box.
LAS
€ 419.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Technical details - Bike carrier
Manufacturer
LAS
Description
BC260 black
Nr. Of bikes
2
Colour
Black
Material
Aluminium
Weight
10,00 kg
Load
60 kg
max. wheelbase [mm]
1250 mm
Carrier lockable
No
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Attachment type
on to the draw bar
foldable
with accessories
foldable
No
Accessories folding mecanism 1
max. bicycle tyre width [mm]
60 mm
min. bicycle frame diameter [mm]
22 mm
max. bicycle frame diameter [mm]
75 mm
Distance between wheel rails [mm]
200 mm
detachable holding brackets
Yes
Recommended speed (km/h) 2
130 km/h
1 Not included.
2 Please aware laws.
Product details

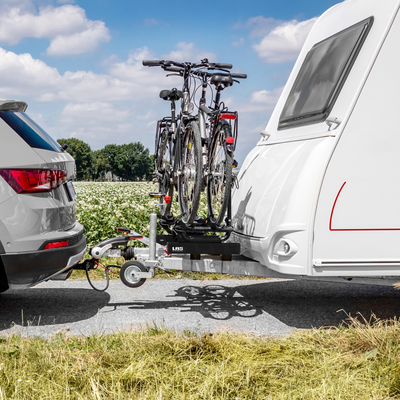

With the BC260 bicycle carrier for the draw bar, the bicycles are transported directly on your trailer's V-drawbar. 2 bicycles or 2 e-bikes with a total load of 60 kg can be attached (max 30 kg per rail).

With the help of tensioning straps, the bike is securely fixed by the tyre with a ratchet fastening.
On the mounting bracket there are lockable frame holders, with which the bike is securely attached to the frame and is protected from theft.

With the help of an additional extension kit, a fold-down function can be added to the BC260. The fold-down adapter can be found below under "matching accessories".

The holder can be placed on every point of the drawbar.
A gap of approx. 85 cm between the holder and the centre of the ball head is necessary to ensure a
sufficient clearance angle. Please pay attention to the permissible bearing load of the towbar and the total weight of the caravan.
