Art. No.: 201963

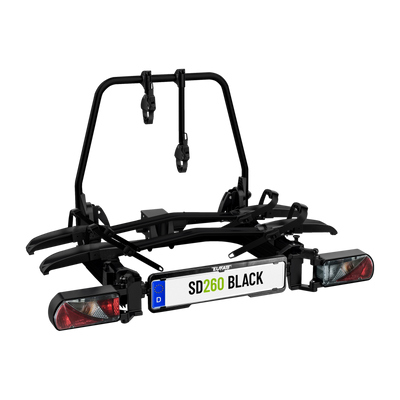

Bike carrier Eufab SD260 black

Art. No.: 201963

Bike carrier Eufab SD260 black

  • for 2 bicycles, expandable to 3 bicycles
  • mounting on the towbar
  • load capacity: 60 kg
  • for vehicles with rear wing doors
  • with sliding system, foldable, lockable
The bicycle carrier has a sliding system so that you can easily open the rear wing doors, which are about 85 cm wide. Easy and quick installation thanks to lockable quick-release catch system. Perfect for campers, vans, motorhomes, family buses and high-roof combos with wing doors.
Eufab
You save 15%
RRP € 849.00 € 719.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Eufab
Nr. Of bikes
2
can be enhanced to
3 bikes
Expansion set for third bicycle 1
Colour
Black
Material
Aluminium, Plastic, Steel
Weight
20,50 kg
Load
60 kg
Vertical load for max. loading capacity
80.5 kg
max. wheelbase [mm]
1300 mm
lockable
Yes
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Fastening
on to the towbar
Fastening system
with clamps
D-value tow bar min.
7.6 kN
foldable
No
foldable
Yes
Plug connector
13 pins
max. bicycle tyre width [mm]
82 mm
max. bicycle frame diameter [mm]
80 mm
Distance between wheel rails [mm]
240 mm
detachable holding brackets
Yes
Recommended speed (km/h) 2
130 km/h
1 Not included.
2 Please aware laws.
Product details

The search has come to an end!

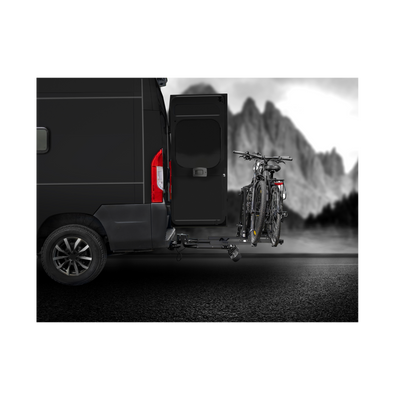

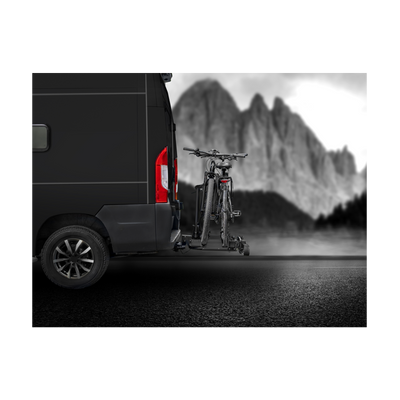

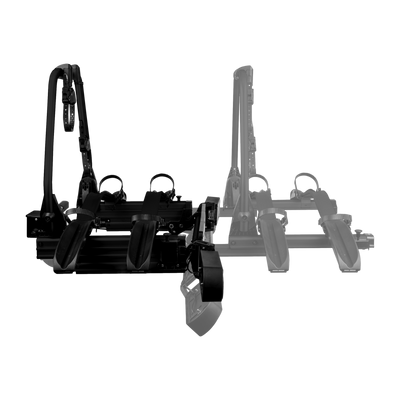

You have a camper / bus or van with wing doors, would like to take a bicycle carrier with you on tour and still be able to quickly get something out of the boot? No problem with the Eufab SD260 black. This innovative bicycle carrier is the solution. In the blink of an eye, the carrier (even when loaded) can be pulled out to the rear by about 70 cm by means of sliding rails. You can therefore easily open rear wing doors up to about 85 cm wide.

The carrier is of course also suitable for cars.

The Eufab SD260 black is a compact, innovative, stable and extremely safe bicycle carrier with the highest level of convenience. The carrier can easily be fitted on almost any towbar. Thanks to the lockable lever fastening system, installation takes place in just a few simple steps.

You can safely transport 2 bicycles (even e-bikes) without difficulty with this bicycle carrier.

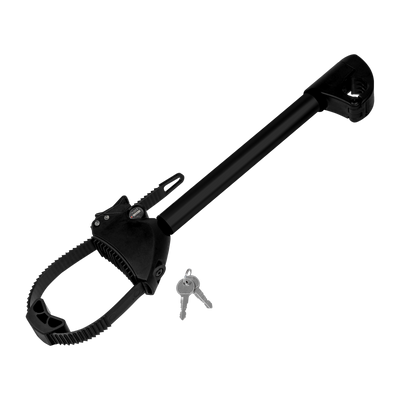

An optimal grip of the bicycle is ensured by detachable and lockable frame holders with a ratchet system, which are also suitable for wheels with oversize or Y-frame. Stable aluminium rails with plastic brackets ensure an optimal grip of the bicycle. To protect the bicycle frame, the bicycle holder has been fitted with rubber inserts. The frame holders guarantee the safety of the load and are also ideally suitable for large frame diameters.

This bicycle carrier is fitted with a 13-pin plug. Please note that, in some EU countries, a 13-pin electrical set is also required when using a bicycle carrier (for instance, in Germany and Austria).

The license plate holder complies with the European standard (520 mm x 110 mm) and can be adjusted in height up to 130 mm.

Black Edition

The extension for a third bike, as well as other practical items matching the product, can be found under "matching accessories".
