Art. No.: 214169

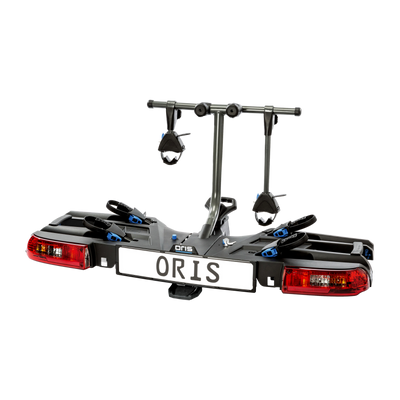

Bike carrier Oris Tracc FIX4BIKE V2

Oris eBike
  • Bike carrier Oris Tracc FIX4BIKE V2
  • Bike carrier Oris Tracc FIX4BIKE V2
Art. No.: 214169

Bike carrier Oris Tracc FIX4BIKE V2

  • for 2 bicycles, expandable to 3 bicycles
  • only for Oris FIX4BIKE towbar
  • payload: 60 kg
  • hinged
  • foldable
The Oris Tracc FIX4BIKE V2 bike carrier, exclusive to the FIX4BIKE towbar system, is very easy to fit. Unpack – Put in place – Fold out With easy operation and a sporty design, nothing stands in the way of your trip with a bike, mountain bike or e-bike.
Please note the special features.
Oris
€ 615.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • only suitable for vehicles with FIX4BIKE towbar
Manufacturer
Oris
Description
Tracc Fix4Bike V2
Nr. Of bikes
2
can be enhanced to
3 bikes
Expansion set for third bicycle 1
Colour
Black/Grey
Material
Steel, Aluminium, Plastic
Weight
18,40 kg
Load
60 kg
Vertical load for max. loading capacity
78.4 kg
min. wheelbase [mm]
1100 mm
max. wheelbase [mm]
1300 mm
lockable
Yes
Bicycles lockable
Yes
premounted
Yes
Bicycle attachment
Frame
Tyre attachment
Tire mounting with lashing straps
Suitable for electric bicycles
Yes
Fastening
on to the towbar
Fastening system
with clamps
foldable
Yes
foldable
Yes
Plug connector
13 pins
max. bicycle tyre width [mm]
80 mm
max. bicycle frame diameter [mm]
100 mm
max. bicycle tyre size [inch]
29 "
Distance between wheel rails [mm]
230 mm
detachable holding brackets
No
Recommended speed (km/h) 2
130 km/h
1 Not included.
2 Please aware laws.
Product details

Exclusively for your vehicle with FIX4BIKE towbar - the Oris Tracc Fix4Bike V2

The FIX4BIKE towbar system has a special adapter solution for the ball neck to fasten the specific bike carriers from the Tracc Fix4Bike V2 series particularly securely. The side pins on the ball head serve as a guide system as well as for protection, and prevent slipping and the need for complicated levelling of the bike carrier.

You can easily transport 2 bikes, sturdy mountain bikes or e-bikes safely on the Oris Tracc Fix4Bike V2 bike carrier.
With a maximum payload of 60 kg, the carrier is a real powerhouse when it comes to transporting bikes.
A third bicycle can also be transported thanks to the optionally available extension: you can find this extension under "matching accessories".

The Oris Tracc bike carrier is mounted on the towbar without any additional tools. The bike carrier is delivered completely pre-assembled and is ready for use immediately after unpacking.

The fold-down mechanism using a foot pedal enables access to the car boot in most cars, even when the bicycles are mounted on the carrier.

The holding brackets are lockable and flexibly adjustable.
If the frame is larger, the carrier can be converted using optional accessories. Longer tyre straps, if needed, are also offered as accessories.

If the carrier is not needed for a trip, it can be folded down and stowed away quickly, easily and in a space-saving manner.
A protective bag for clean storage is of course also included in the scope of delivery.

The licence plate holder on this bicycle carrier is compatible for licence plates with the dimensions 520 mm x 110 mm (width x height).
Our tip is to fix Austrian licence plates to the licence plate holder with screws.

This bike carrier is fitted with a 13-pin plug. Please note that, in some EU countries, a 13-pin electrical set is also required when using a bike carrier (for instance, in Germany and Austria).

Exclusive bike carrier for exclusive FIX4BIKE towbars.

A FIX4BIKE towbar may be present on the following vehicles:

- Mercedes C-Klasse Limousine W205 07.13-
- Mercedes C-Klasse Kombi S205 09.14-
- Mercedes E-Klasse Limousine W213 01.16-
- Mercedes E-Klasse Kombi S213 07.16-
- Mercedes EQC
- Mercedes GLC X253 06.15-
- Mercedes GLC Coupe C253 06.16-
- Mercedes GLE W166 04.15-10.18
- Mercedes GLE Coupe C292 03.15-10.19
- Mercedes GLS X166 11.15-04.19
- Mercedes GLS X167 04.19-
- Mercedes S-Klasse W223 09.20-
- Opel Insignia B Grand Sport Z18 03.17-
- Opel Insignia B Sportstourer Z18 03.17-
- Volvo S60 I 224 02.19-
- Volvo V60 225,227 02.18-
- Volvo S90 234 01.16-
- Volvo V90 235,236 03.16-
- Volvo XC40 536 10.17-
- Volvo XC60 246 03.17-
- Volvo XC90 256 09.14-
- VW Touareg I CR7 11.17-
- VW ID.3 E11 11.19-
