Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 186302-36675-1

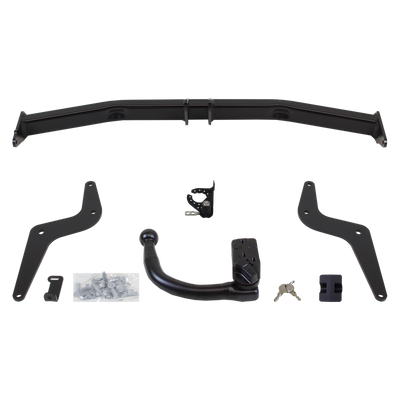

Brink Towbar detachable incl. ECS electrical set 7pins specific - RENAULT MEGANE IV Grandtour

Brink
  • Brink Towbar detachable incl. ECS electrical set 7pins specific
  • Brink Towbar detachable incl. ECS electrical set 7pins specific
Art. No.: 186302-36675-1

Brink Towbar detachable incl. ECS electrical set 7pins specific - RENAULT MEGANE IV Grandtour

  • Towbar variant: Towball inserted from below
  • Towing capacity: 750 kg
  • Vertical load: 75 kg
  • Electrical set-model: Top Tronic
  • suitable for RENAULT MEGANE IV Grandtour
  • year of make 05.20 -
print Suggest a price
Brink
You save 19%
RRP € 945.00 € 763.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Additional notes
  • the towbar preparation consists of a white 8-pin plug, which is already connected (located in the car boot behind the left-hand side cladding)
  • for vehicles with full hybrid drive
  • for vehicles with plug-in hybrid
Manufacturer towbar
Brink
Manufacturer electrical set
ECS
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Top Tronic
Vehicle-specific plug connector
Yes
Towing capacity 1
750 kg
Vertical load 2
75 kg
D-value
6,00 kN
Ball head lockable
lockable
Certification
E11*55R*0111869
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
22,50 kg
Installation time (in hours) 3
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
Yes
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete detachable towbar set with 7-pin electrical kit for your RENAULT MEGANE IV Grandtour

Your vehicle will be optimally equipped to meet all challenges with this complete set, comprising a detachable towbar from Brink and the necessary 7-pin electrical kit. Perfectly matched to your RENAULT MEGANE IV Grandtour, this towbar and electrical kit were developed for you to tow a trailer of up to 750 kg. The ball head can be simply removed and stored in the boot when it is not required.

The vehicle does not need to be inspected by an expert after the complete set has been installed. There is also no need for an entry in the vehicle documentation of your RENAULT MEGANE IV Grandtour . Please note the instructions of the vehicle manufacturer in your vehicle user manual.

From the smallest screw to the installation instructions, this complete set provides you with everything you need to install the towbar on your RENAULT MEGANE IV Grandtour.
