Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 181328-05489-1

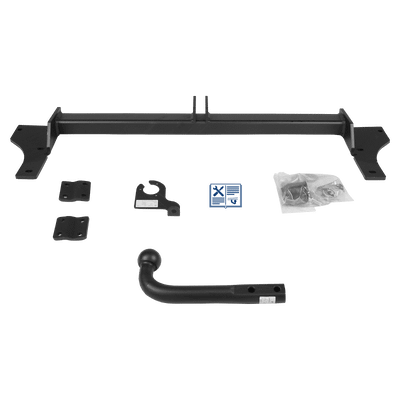

GDW Towbar rigid incl. ECS electrical set 7pins specific - SUZUKI GRAND VITARA II

GDW
  • GDW Towbar rigid incl. ECS electrical set 7pins specific
  • GDW Towbar rigid incl. ECS electrical set 7pins specific
Art. No.: 181328-05489-1

GDW Towbar rigid incl. ECS electrical set 7pins specific - SUZUKI GRAND VITARA II

  • Towbar variant: with screwed-on ball head
  • Towing capacity: 2100 kg
  • Vertical load: 85 kg
  • Electrical set-model: without indicator monitoring
  • suitable for SUZUKI GRAND VITARA II
  • year of make 10.10 -
Please note the special features.
print Suggest a price
GDW
You save 23%
RRP € 464.00 € 356.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: X30
Manufacturer towbar
GDW
Manufacturer electrical set
ECS
Towbar type
rigid
Towbar variant
with screwed-on ball head
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
without indicator monitoring
Vehicle-specific plug connector
Yes
Towing capacity 1
2.100 kg
Vertical load 2
85 kg
D-value
10,50 kN
Certification
e6*94/20*0921*00
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Weight
18,83 kg
Installation time (in hours) 3
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
No
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set for your SUZUKI GRAND VITARA II: rigid with a 7-pin electrical kit

Consisting of a rigid towbar by GDW and the necessary 7-pin electrical kit, this complete set optimally equips your vehicle to meet all challenges. Perfectly matched to your SUZUKI GRAND VITARA II, this towbar and electrical kit were developed for you to tow a trailer of up to 2100 kg.

It is not necessary to subject your SUZUKI GRAND VITARA II to an expert inspection or to make an entry in your vehicle documentation. The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with. Your car's parking assistance sensors might detect the tow ball of this rigid towbar. If the ball head is in the detection area, it will be seen as an obstacle when reversing. We recommend fitting a detachable towbar in vehicles with parking sensors.

From the smallest screw to the installation instructions, this complete set provides you with everything you need to install the towbar on your SUZUKI GRAND VITARA II.

matching accessory for GDW Towbar rigid incl. ECS electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    suitable vehicles

    Suzuki is known as a motorcycle manufacturer but also manufactures cars and outboard motors. Cars are however built mainly for foreign producers. VW owns a small part of Suzuki, who is the global export champion in motorcycles.

    • Suzuki GRAND VITARA II (JT, TE, TD)
      • Vehicle model
        Power
        Year of make
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 (JB416)
        Power
        78 kW / 106 HP
        Year of make
        10.05 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 All-wheel Drive (JB416)
        Power
        78 kW / 106 HP
        Year of make
        04.05 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 All-wheel Drive (TA74, JB416)
        Power
        73 kW / 99 HP
        Year of make
        09.05 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,...
        Power
        95 kW / 129 HP
        Year of make
        10.05 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 (JB420)
        Power
        99 kW / 135 HP
        Year of make
        01.10 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 (JB420)
        Power
        103 kW / 140 HP
        Year of make
        10.05 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 All-wheel Drive (TD54V, JB420)
        Power
        103 kW / 140 HP
        Year of make
        10.05 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 (JB424)
        Power
        122 kW / 166 HP
        Year of make
        09.08 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 (JB424)
        Power
        124 kW / 169 HP
        Year of make
        09.09 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 All-wheel Drive (JB424)
        Power
        124 kW / 169 HP
        Year of make
        01.09 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 All-wheel Drive (JT424, JB424, TDA4)
        Power
        122 kW / 166 HP
        Year of make
        01.09 -
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 3.2 All-wheel Drive (JB632, TDB4)
        Power
        165 kW / 224 HP
        Year of make
        06.08 - 02.15
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 3.2 All-wheel Drive (TDB4, JT632, JB632)
        Power
        171 kW / 233 HP
        Year of make
        01.09 - 02.15
