Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 178392-36541-1

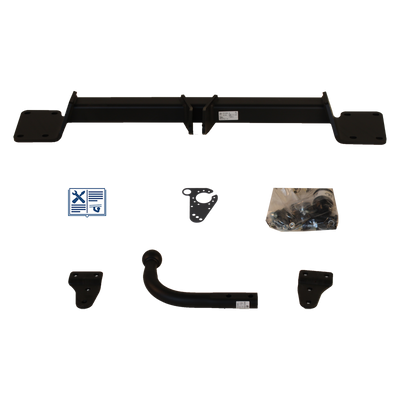

GDW Towbar rigid incl. TowTec electrical set 7pins specific - VOLVO S90 II

GDW
  • GDW Towbar rigid incl. TowTec electrical set 7pins specific
  • GDW Towbar rigid incl. TowTec electrical set 7pins specific
Art. No.: 178392-36541-1

GDW Towbar rigid incl. TowTec electrical set 7pins specific - VOLVO S90 II

  • Towbar variant: with screwed-on ball head
  • Towing capacity: 2500 kg
  • Vertical load: 140 kg
  • Electrical set-model: Data bus
  • suitable for VOLVO S90 II
  • year of make 03.16 - 01.21
Please note the special features.
print Suggest a price
GDW
€ 505.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: R-Design
Manufacturer towbar
GDW
Manufacturer electrical set
TowTec
Towbar type
rigid
Towbar variant
with screwed-on ball head
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Towing capacity 1
2.500 kg
Vertical load 2
140 kg
D-value
12,55 kN
Certification
E6*55R*01*1461
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
18,05 kg
Installation time (in hours) 3
3,5 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
Yes
Cable gland present in vehicle
Yes
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete rigid towbar set with 7-pin electrical kit for your VOLVO S90 II

Your vehicle will be optimally equipped to meet all challenges with this complete set, comprising a rigid towbar by GDW and the necessary 7-pin electrical kit. The towbar and electrical kit were developed specifically for your VOLVO S90 II. You can tow trailers weighing up to 2500 kg with them.

It is not necessary to subject your VOLVO S90 II to an expert inspection or to make an entry in your vehicle documentation. The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with. Your car's parking assistance sensors might detect the tow ball of this rigid towbar. If the ball head is in the detection area, it will be seen as an obstacle when reversing. We recommend fitting a detachable towbar in vehicles with parking sensors.

This complete set provides you with everything you need, from the smallest screw to the installation instructions, to install the towbar on your VOLVO S90 II.

matching accessory for GDW Towbar rigid incl. TowTec electrical set 7pins specific (1)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    suitable vehicles

    Volvo was originally established in 1927 as a commercial vehicle manufacturer. The company employs about 100,000 people worldwide and has its headquarters in Gothenburg. Volvo manufactures cars, buses, trucks and construction equipment.

    • Volvo S90 II (234)
      • Vehicle model
        Power
        Year of make
      • Vehicle model
        Volvo S90 II (234) 2.0
        Power
        183 kW / 249 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) B4 Mild-Hybrid
        Power
        145 kW / 197 HP
        Year of make
        03.20 -
      • Vehicle model
        Volvo S90 II (234) B5 Mild Hybrid AWD
        Power
        173 kW / 235 HP
        Year of make
        12.20 -
      • Vehicle model
        Volvo S90 II (234) B5 Mild-Hybrid
        Power
        184 kW / 250 HP
        Year of make
        03.20 -
      • Vehicle model
        Volvo S90 II (234) B6 Mild-Hybrid AWD
        Power
        220 kW / 299 HP
        Year of make
        03.20 -
      • Vehicle model
        Volvo S90 II (234) D3
        Power
        110 kW / 150 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D4
        Power
        120 kW / 163 HP
        Year of make
        09.18 - 12.21
      • Vehicle model
        Volvo S90 II (234) D4
        Power
        140 kW / 190 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D4 AWD
        Power
        140 kW / 190 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D4 Drive-E Polestar
        Power
        147 kW / 200 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D4 Drive-E Polestar AWD
        Power
        147 kW / 200 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D5 AWD
        Power
        173 kW / 235 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) D5 Polestar AWD
        Power
        177 kW / 240 HP
        Year of make
        03.16 - 11.21
      • Vehicle model
        Volvo S90 II (234) T4
        Power
        140 kW / 190 HP
        Year of make
        10.17 - 12.21
      • Vehicle model
        Volvo S90 II (234) T4 Polestar
        Power
        155 kW / 210 HP
        Year of make
        06.19 - 12.21
      • Vehicle model
        Volvo S90 II (234) T5
        Power
        184 kW / 250 HP
        Year of make
        10.17 - 12.21
      • Vehicle model
        Volvo S90 II (234) T5
        Power
        187 kW / 254 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) T5 Drive-E Polestar
        Power
        186 kW / 253 HP
        Year of make
        10.17 - 12.21
      • Vehicle model
        Volvo S90 II (234) T5 Drive-E Polestar
        Power
        192 kW / 261 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) T6 AWD
        Power
        228 kW / 310 HP
        Year of make
        10.17 - 12.21
      • Vehicle model
        Volvo S90 II (234) T6 AWD
        Power
        235 kW / 320 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) T6 Drive-E Polestar AWD
        Power
        240 kW / 326 HP
        Year of make
        10.17 - 12.21
      • Vehicle model
        Volvo S90 II (234) T6 Drive-E Polestar AWD
        Power
        246 kW / 334 HP
        Year of make
        03.16 - 12.21
      • Vehicle model
        Volvo S90 II (234) T8 Hybrid AWD
        Power
        287 kW / 390 HP
        Year of make
        04.18 - 12.22
      • Vehicle model
        Volvo S90 II (234) T8 Hybrid Polestar AWD
        Power
        233 kW / 317 HP
        Year of make
        01.19 -
      • Vehicle model
        Volvo S90 II (234) T8 Plug-in Hybrid AWD
        Power
        299 kW / 407 HP
        Year of make
        10.17 - 12.22
      • Vehicle model
        Volvo S90 II (234) T8 Plug-in Hybrid Polestar AWD
        Power
        246 kW / 334 HP
        Year of make
        10.17 - 12.22
