Art. No.: 146801-36680-2

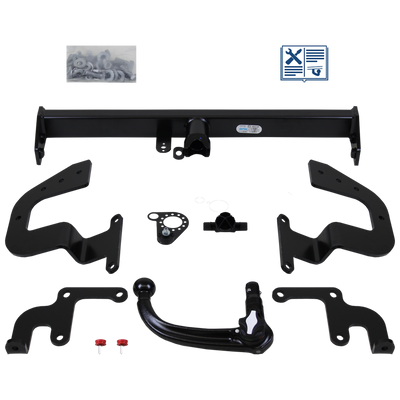

Oris Towbar detachable Towball inserted from below - TOYOTA PROACE Bus

Art. No.: 146801-36680-2

Oris Towbar detachable Towball inserted from below - TOYOTA PROACE Bus

  • Towing capacity: 2500 kg
  • Vertical load: 100 kg
  • suitable for TOYOTA PROACE Bus
  • Year of make 01.21 -
Please note the special features.
Oris
€ 526.99
incl. 19% VAT plus shipping costs starting from € 11.31
available from 2026-06-22
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: 4x4
Additional notes
  • please check if the towing capacity is specified in the vehicle documents
Manufacturer
Oris
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,0 h
Vertical load 2
100 kg
Towing capacity 3
2.500 kg
D-value
13,60 kN
Certification
E7*55R*011736*00
Ball head lockable
lockable
Bumper alteration neccessary
No
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
25,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

Top class producer Oris recommends this towbar specifically for your TOYOTA PROACE Bus . The vertical fully automatic detachable Oris AK 41 towbar system is for the TOYOTA PROACE Bus driver who demands high quality. The Oris system for TOYOTA PROACE Bus has a high loading capacity and is highly versatile. It can be used for work and vacation. It boasts with good design, simple handling and excellent manufacturing.

This anti-theft towbar comes with an integrated lock. Towing capacity up to 2500 kg and a vertical load of 100 kg characterize this towbar. Oris indicates a fatigue strength of 13.6 kN.

You don't have to cut the bumper to fit this towbar.

In our category "bike carriers" you can find bike carriers that can be securely attached to this TOYOTA PROACE Bus towbar. We deliver this original part from Oris at the best price.

The ordered article includes detailed assembly instructions from Oris. This towbar features a cathodic electro-dip coating. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. The result is effective corrosion protection combined with a high-quality smooth surface.

Read and follow the instructions of the vehicle manufacturer when installing the hitch. Normally all information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

Toyota is currently the largest car manufacturer in the world and employs more than 300,000 people worldwide. Toyota group includes famous brands vehicle like: Lexus, Scion, Daihatsu and Hino. Toyota also has strategic partnerships with Isuzu and Subaru.

  • Toyota PROACE Bus (MPY_)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Toyota PROACE Bus (MPY_) Electric (MPYS, MPYZ)
      Power
      100 kW / 136 HP
      Year of make
      01.21 - 12.23
    • Vehicle model
      Toyota PROACE Bus (MPY_) Electric (MPYS, MPYZ)
      Power
      100 kW / 136 HP
      Year of make
      01.24 -
