Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 111964-10251-1

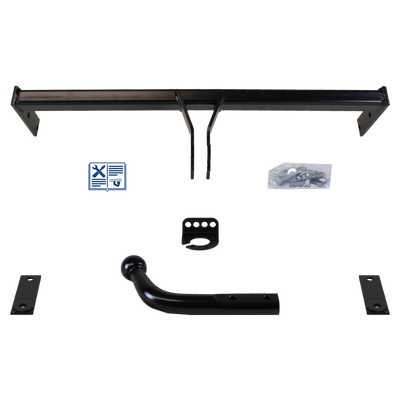

Oris Towbar rigid with screwed-on ball head - VOLVO V40 Hatchback

Oris
  • Oris Towbar rigid with screwed-on ball head
Art. No.: 111964-10251-1

Oris Towbar rigid with screwed-on ball head - VOLVO V40 Hatchback

  • Towing capacity: 1500 kg
  • Vertical load: 75 kg
  • suitable for VOLVO V40 Hatchback
  • Year of make 03.12 - 08.19
print Suggest a price
Oris
€ 0.00
incl. 19% VAT plus shipping costs
On request
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer
Oris
Towbar type
rigid
Towbar variant
with screwed-on ball head
Assembly time 1
2,0 h
Vertical load 2
75 kg
Towing capacity 3
1.500 kg
D-value
9,70 kN
Certification
E7*55R*011352*00
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
14,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

This rigid towbar with bolted-on tow ball head for your VOLVO V40 Hatchback is produced by the brand manufacturer Oris. This towbar is the right choice for daily and heavy usage. And it's inexpensive. Simple design, inexpensive, and durable - this is our rigid, bolted-on Oris System ASP towbar for your VOLVO V40 Hatchback. Like all rigid towbars, it focuses on extreme durability for frequent use.

Towing capacity up to 1500 kg and a vertical load of 75 kg characterize this towbar. A fatigue strength of 9.7 kN is listed for Oris.

A cut in the visible area of the bumper is required to fit this towbar. A cutting template or cutting dimensions can be found in the installation instructions.

You can fit bike carriers securely onto this VOLVO V40 Hatchback towbar. Find the right products in the category "bike carriers". We deliver this original part from Oris at the best price.

You will receive detailed installation instructions for this product from the manufacturer Oris. A cathodic electro-dip coating is present. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. Effective corrosion protection and a smooth surface are the result.

Read and follow the instructions of the vehicle manufacturer when installing the hitch. Normally all information can be found in the vehicle's user manual. Your car's parking assistance sensors might detect the tow ball. In reverse it could be recognized as an obstacle.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

Volvo was founded in Sweden in 1927 as a commercial vehicle producer. Today, Volvo mainly produces buses, cars, construction equipment and trucks. The headquarters are located in Gothenburg and Volvo globally employs about 100,000 people.

  • Volvo V40 Hatchback (525)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Volvo V40 Hatchback (525) D2
      Power
      84 kW / 114 HP
      Year of make
      03.12 - 12.16
    • Vehicle model
      Volvo V40 Hatchback (525) D2
      Power
      88 kW / 120 HP
      Year of make
      02.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) D3
      Power
      110 kW / 150 HP
      Year of make
      03.12 - 03.15
    • Vehicle model
      Volvo V40 Hatchback (525) D3
      Power
      110 kW / 150 HP
      Year of make
      04.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) D4
      Power
      130 kW / 177 HP
      Year of make
      03.12 - 12.14
    • Vehicle model
      Volvo V40 Hatchback (525) D4
      Power
      140 kW / 190 HP
      Year of make
      05.14 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) D4 Polestar
      Power
      147 kW / 200 HP
      Year of make
      05.14 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T2
      Power
      90 kW / 122 HP
      Year of make
      02.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T2
      Power
      90 kW / 122 HP
      Year of make
      02.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T2 GTDi
      Power
      88 kW / 120 HP
      Year of make
      04.13 - 12.16
    • Vehicle model
      Volvo V40 Hatchback (525) T3
      Power
      112 kW / 152 HP
      Year of make
      02.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T3
      Power
      112 kW / 152 HP
      Year of make
      02.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T3 GTDi
      Power
      110 kW / 150 HP
      Year of make
      03.12 - 12.16
    • Vehicle model
      Volvo V40 Hatchback (525) T4
      Power
      132 kW / 180 HP
      Year of make
      07.13 - 12.15
    • Vehicle model
      Volvo V40 Hatchback (525) T4
      Power
      140 kW / 190 HP
      Year of make
      08.15 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T4
      Power
      147 kW / 200 HP
      Year of make
      04.14 - 12.15
    • Vehicle model
      Volvo V40 Hatchback (525) T4 GTDi
      Power
      132 kW / 180 HP
      Year of make
      03.12 - 12.16
    • Vehicle model
      Volvo V40 Hatchback (525) T5
      Power
      157 kW / 214 HP
      Year of make
      03.13 - 12.15
    • Vehicle model
      Volvo V40 Hatchback (525) T5
      Power
      180 kW / 245 HP
      Year of make
      05.14 - 08.19
    • Vehicle model
      Volvo V40 Hatchback (525) T5
      Power
      183 kW / 249 HP
      Year of make
      01.14 - 12.14
    • Vehicle model
      Volvo V40 Hatchback (525) T5
      Power
      187 kW / 254 HP
      Year of make
      12.12 - 12.14
    • Vehicle model
      Volvo V40 Hatchback (525) T5 Drive-E Polestar
      Power
      186 kW / 253 HP
      Year of make
      05.14 - 08.19
