Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 101536-01911-1

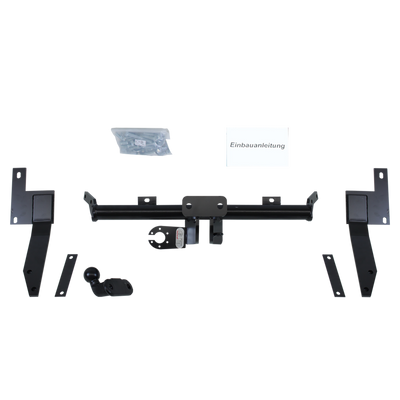

Oris Towing hitch with 2-hole flange ball - PEUGEOT PARTNER Box Body/MPV

Oris
  • Oris Towing hitch with 2-hole flange ball
Art. No.: 101536-01911-1

Oris Towing hitch with 2-hole flange ball - PEUGEOT PARTNER Box Body/MPV

  • Towing capacity: 1100 kg
  • Vertical load: 70 kg
  • suitable for PEUGEOT PARTNER Box Body/MPV
  • Year of make 06.96 - 12.15
print
Oris
40% Special offer discount
instead of € 258.99 € 155.39
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Additional notes
  • for vehicles without natural gas (CNG) / LPG drive
Manufacturer
Oris
Towbar type
Towing hitch
Towbar variant
with 2-hole flange ball
Assembly time 1
2,0 h
Vertical load 2
70 kg
Towing capacity 3
1.100 kg
D-value
6,90 kN
Certification
e4*94/20*0506*00
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
No
Socket holder can be folded in
No
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Hole pattern [mm]
90 mm
Hole diameter [mm]
17 mm
Swap system suitable
No
Weight
17,69 kg
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
not height adjustable
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

Suitable for your PEUGEOT PARTNER Box Body/MPV : The 2-hole towing hitch is provided by Oris. The towing hitch with the 2-hole flange ball System 2LF is a special towbar by Oris for all PEUGEOT PARTNER Box Body/MPV vehicles.

Towing capacity up to 1100 kg and a vertical load of 70 kg characterize this towbar. Oris indicates a fatigue strength of 6.9 kN.

A small cut in the bumper is needed to fit this towbar. Bumper cut indicators are visible on the inside of the PEUGEOT bumper.

Bike carriers can be securely fitted onto this PEUGEOT PARTNER Box Body/MPV towbar. We deliver this original part from Oris at the best price.

The detailed installation instructions from the manufacturer Oris are included with this product. A cathodic electro-dip coating is present. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. Effective corrosion protection and a high-quality smooth surface is the result.

The 2 hole towing hitch could be seen as an obstacle by parking assistance systems. Please read the instructions and specifications of the vehicle manufacturer when retrofitting a towbar. Normally such information can be found in your vehicle user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

Peugeot together with Citroen is a part of the French PSA group and is its oldest brand. Peugeot employs more than 200.000 people and has its headquarters in Paris.

  • Peugeot PARTNER Box Body/MPV (5_, G_)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.1
      Power
      44 kW / 60 HP
      Year of make
      06.96 - 09.05
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.4
      Power
      48 kW / 65 HP
      Year of make
      10.05 - 12.10
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.4
      Power
      54 kW / 73 HP
      Year of make
      11.02 - 10.06
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.4
      Power
      55 kW / 75 HP
      Year of make
      06.96 - 12.15
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.4 BiFuel
      Power
      55 kW / 75 HP
      Year of make
      04.03 - 10.06
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.4 CNG
      Power
      55 kW / 75 HP
      Year of make
      04.03 - 10.06
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6
      Power
      80 kW / 109 HP
      Year of make
      09.00 - 10.02
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6 Bioflex
      Power
      80 kW / 109 HP
      Year of make
      09.00 - 10.02
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6 HDI 92
      Power
      68 kW / 92 HP
      Year of make
      11.09 - 12.10
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6 HDi 75
      Power
      55 kW / 75 HP
      Year of make
      08.05 - 12.11
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6 HDi 75
      Power
      55 kW / 75 HP
      Year of make
      08.05 - 07.08
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.6 HDi 90
      Power
      66 kW / 90 HP
      Year of make
      08.05 - 12.15
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.8 D
      Power
      43 kW / 58 HP
      Year of make
      06.96 - 12.02
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.8 D
      Power
      44 kW / 60 HP
      Year of make
      11.96 - 02.98
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.9 D
      Power
      50 kW / 68 HP
      Year of make
      06.96 - 12.98
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.9 D
      Power
      51 kW / 69 HP
      Year of make
      06.96 - 12.02
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.9 D
      Power
      51 kW / 69 HP
      Year of make
      06.96 - 12.15
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 1.9 D 4x4
      Power
      51 kW / 69 HP
      Year of make
      04.04 - 07.11
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 2.0 HDi
      Power
      66 kW / 90 HP
      Year of make
      04.00 - 07.08
    • Vehicle model
      Peugeot PARTNER Box Body/MPV (5_, G_) 2.0 HDi 4x4
      Power
      66 kW / 90 HP
      Year of make
      04.04 - 08.05
