Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 111013-04947-1

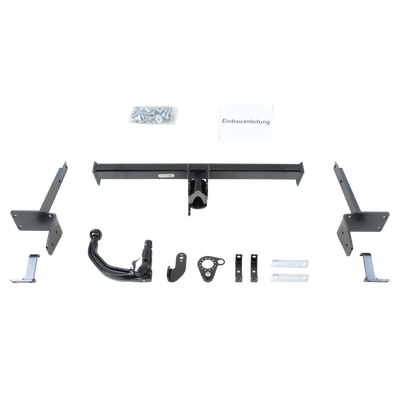

Oris Towbar detachable Towball inserted from below - MERCEDES-BENZ E-CLASS T-Model

Oris
  • Oris Towbar detachable Towball inserted from below
Art. No.: 111013-04947-1

Oris Towbar detachable Towball inserted from below - MERCEDES-BENZ E-CLASS T-Model

  • Towing capacity: 2219 kg
  • Vertical load: 130 kg
  • suitable for MERCEDES-BENZ E-CLASS T-Model
  • Year of make 03.03 - 07.09
Please note the special features.
print Suggest a price
Oris
You save 40%
RRP € 960.00 € 569.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
MERCEDES-BENZ E-CLASS T-Model towbar option gallery

The "Option gallery" tab makes it even easier to get an idea what your new towing package looks at your MERCEDES-BENZ E-CLASS T-Model. You'll see before and after images, with or without the towbar installed. Images with the ball head detached are shown for detachable towbars. See for yourself whether the cut-out at the bumper (if provided) is visible at your MERCEDES-BENZ E-CLASS T-Model.

Order the complete kit now
Data Sheet
Special features
  • min. blower motor power: 600 W
  • Model exclusion: AMG
Additional notes
  • for vehicles with BlueEFFICIENCY or BlueTec technology, please check if the towing capacity is specified in the vehicle documents
Manufacturer
Oris
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,5 h
Vertical load 2
130 kg
Towing capacity 3
2.219 kg
D-value
11,74 kN
Certification
E7*55R*011337*00
Ball head lockable
lockable
Bumper alteration neccessary
No
Bumper cover included in scope of supply
No
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
24,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

Top class producer Oris recommends this towbar specifically for your MERCEDES-BENZ E-CLASS T-Model . The vertical fully automatic detachable Oris AK 41 towbar system is for the MERCEDES-BENZ E-CLASS T-Model driver who demands high quality. The Oris system for MERCEDES-BENZ E-CLASS T-Model has a high loading capacity and is highly versatile. It can be used for work and vacation. It boasts with good design, simple handling and excellent manufacturing.

This anti-theft towbar comes with an integrated lock. This towbar has a towing capacity of up to 2219 kg and a vertical load of 130 kg. Oris indicates a fatigue strength of 11.74 kN.

No need to cut the bumper to fit this towbar.

Bike carriers can be securely fitted onto this MERCEDES-BENZ E-CLASS T-Model towbar. We deliver this original part from top class manufacturer Oris at the best price.

The ordered article includes detailed assembly instructions from Oris. This towbar features a cathodic electro-dip coating. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. The result is effective corrosion protection combined with a high-quality smooth surface.

Read and follow the instructions of the vehicle manufacturer when installing the hitch. Normally all information can be found in the vehicle's user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

Vehicles of Daimler AG are known as Mercedes-Benz. Cars, trucks, vans, commercial vehicles and buses are marketed worldwide under the brand name. In addition, Mercedes-Benz, founded in 1926, has been very successful in motor sports. With its headquarters in Stuttgart, Daimler AG has around 270,000 employees around the world.

  • Mercedes-Benz E-CLASS T-Model (S211)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) 350 CGI (211.257)
      Power
      215 kW / 292 HP
      Year of make
      05.06 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 200 CDI (211.207)
      Power
      100 kW / 136 HP
      Year of make
      04.06 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 200 Kompressor (211.241)
      Power
      135 kW / 184 HP
      Year of make
      04.06 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 200 T Kompressor (211.242)
      Power
      120 kW / 163 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 220 CDI (211.206)
      Power
      100 kW / 136 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 220 T CDI (211.206)
      Power
      110 kW / 150 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 220 T CDI (211.208)
      Power
      120 kW / 163 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 220 T CDI (211.208)
      Power
      125 kW / 170 HP
      Year of make
      04.06 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 230 T (211.252)
      Power
      150 kW / 204 HP
      Year of make
      05.07 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 240 T (211.261)
      Power
      120 kW / 163 HP
      Year of make
      06.03 - 11.04
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 240 T (211.261)
      Power
      130 kW / 177 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 240 T 4-matic (211.280)
      Power
      130 kW / 177 HP
      Year of make
      07.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 270 T CDI (211.216)
      Power
      120 kW / 163 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 270 T CDI (211.216)
      Power
      130 kW / 177 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 280 T (211.254)
      Power
      170 kW / 231 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 280 T 4-matic (211.292)
      Power
      170 kW / 231 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 280 T CDI (211.220)
      Power
      140 kW / 190 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 280 T CDI (211.223)
      Power
      130 kW / 177 HP
      Year of make
      05.04 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 280 T CDI 4-matic (211.284)
      Power
      140 kW / 190 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T (211.265)
      Power
      165 kW / 224 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T 4-matic (211.282)
      Power
      165 kW / 224 HP
      Year of make
      07.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T CDI (211.222)
      Power
      155 kW / 211 HP
      Year of make
      11.07 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T CDI (211.222)
      Power
      165 kW / 224 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T CDI (211.226)
      Power
      150 kW / 204 HP
      Year of make
      03.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 320 T CDI 4-matic (211.289)
      Power
      165 kW / 224 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 350 T (211.256)
      Power
      200 kW / 272 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 350 T 4-matic (211.287)
      Power
      200 kW / 272 HP
      Year of make
      03.05 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 500 T (211.270)
      Power
      225 kW / 306 HP
      Year of make
      10.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 500 T (211.272)
      Power
      285 kW / 388 HP
      Year of make
      04.06 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 500 T 4-matic (211.283)
      Power
      225 kW / 306 HP
      Year of make
      10.03 - 07.09
    • Vehicle model
      Mercedes-Benz E-CLASS T-Model (S211) E 500 T 4-matic (211.290)
      Power
      285 kW / 388 HP
      Year of make
      04.06 - 07.09
