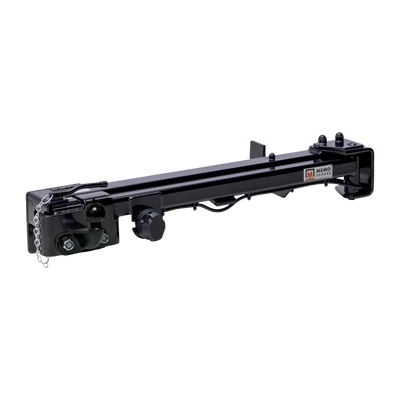

Van-Swing Swing module
Van-Swing Swing module
- <b>only suitable for bike carriers</b>
- for VW Crafter 2017- / MAN TGE 2017-
- for towbar with 2/4-hole flange ball
- an adapter plate is required for a 4-hole flange ball: you can find this under "matching accessories".
- opening to the right
- 99 % positive reviews
- top quality
- quick delivery
- first rate advice
You know the problem: the bike carrier is mounted on the towbar and the rear doors cannot be opened? Then the Van-Swing is the ideal solution for you.
By assembling the Van Swing module on the existing towing bracket you can make optimal use of your bike carrier. The mounted bike carrier including bikes does not have to be removed if you want to open the rear doors of your vehicle. The swing module, with hinge on the right side, gives you the option of swivelling the carrier with your bikes to the right side so that both rear doors can be opened simultaneously.
The swing module is suitable for towing brackets with a 2-hole flange ball (90 mm) and 4-hole flange ball (83x56 mm). An adapter plate is required for a 4-hole flange ball: you can find this under "matching accessories". The Van-Swing uses the existing mounting holes on the towing bracket and is additionally attached to the vehicle frame using an assembly kit. The swing module has a load capacity of 60 kg. This includes the bikes and the bike carrier. This means that if the bike carrier weighs 15 kg, the bikes can still weigh a maximum of 45 kg.
Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.
