Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 121923-12857-1

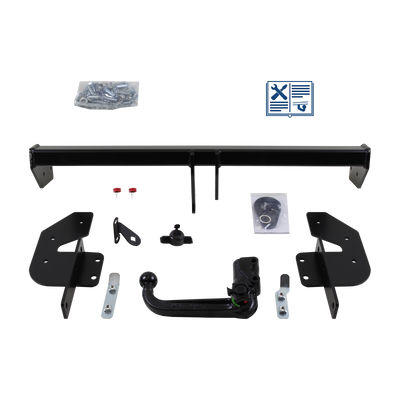

Westfalia Towbar detachable Towball inserted from below - NISSAN X-TRAIL III

Westfalia
  • Westfalia Towbar detachable Towball inserted from below
Art. No.: 121923-12857-1

Westfalia Towbar detachable Towball inserted from below - NISSAN X-TRAIL III

  • Towing capacity: 2000 kg
  • Vertical load: 80 kg
  • suitable for NISSAN X-TRAIL III
  • Year of make 10.13 -
print Suggest a price
Westfalia
€ 718.99
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
NISSAN X-TRAIL III towbar option gallery

The "Option gallery" tab makes it even easier to get an idea what your new towing package looks at your NISSAN X-TRAIL III. You'll see before and after images, with or without the towbar installed. Images with the ball head detached are shown for detachable towbars. See for yourself whether the cut-out at the bumper (if provided) is visible at your NISSAN X-TRAIL III.

Order the complete kit now
Data Sheet
Manufacturer
Westfalia
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Assembly time 1
2,0 h
Vertical load 2
80 kg
Towing capacity 3
2.000 kg
D-value
10,86 kN
Certification
E4*R55*01*0660
Ball head lockable
lockable
Bumper alteration neccessary
Yes
Alteration in visible area
with invisible bumper cut
Dismantling of bumper neccessary
Yes
Socket holder can be folded in
Yes
Towbar with electrical set
No
Suitable for bike carrier / load carrier
Yes
Weight
27,00 kg
1 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
Product details

This detachable towbar was specifically designed and manufactured by top class manufacturer Westfalia for your NISSAN X-TRAIL III . The advantages of the vertical A40H towbar system are: the 1A Westfalia quality, the patented locking system, the barely visible mounting on your NISSAN X-TRAIL III. The vertical Westfalia A40H automatic system is one of the bestselling Westfalia products.

This towbar can be secured against theft by an integrated lock. The raw facts: a towing capacity up to 2000 kg and a vertical load of 80 kg. A fatigue strength of 10.86 kN is listed for Westfalia.

A cut in the lower part of the bumper is required during installation. This cut will not be visible.

Bike carriers can be securely fitted onto this NISSAN X-TRAIL III towbar. We deliver this original part from top class manufacturer Westfalia at the best price.

You will receive detailed installation instructions for this product from the manufacturer Westfalia. A cathodic electro-dip coating is present. This is a modern and efficient painting process that uses environmentally friendly, water-soluble epoxy resis with electrical current and temperatures of approx. 200°C. Effective corrosion protection and a smooth surface are the result.

Please read the instructions and specifications of the vehicle manufacturer when retrofitting a towbar. Normally such information can be found in your vehicle user manual.

Installation instructions

Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

Ratings
  • (0)
  • (0)
  • (0)
  • (0)
  • (0)
Rate this item!

At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

There is still no rating for this product.

Here you can share your opinion and your experience with this product to provide valuable information for other buyers

suitable vehicles

Nissan was founded in 1933 and employs over 183,000 people. In 1999, a strategic partnership was made with Renault, the Renault-Nissan Alliance. Since 2010 there is also a partnership with Daimler AG (Mercedes-Benz).

  • Nissan X-TRAIL III (T32_, T32R, T32RR)
    • Vehicle model
      Power
      Year of make
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.3 DIG-T
      Power
      116 kW / 158 HP
      Year of make
      06.21 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.3 DIG-T
      Power
      118 kW / 160 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.6 DIG-T (T32)
      Power
      120 kW / 163 HP
      Year of make
      06.15 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.6 dCi (T32)
      Power
      96 kW / 130 HP
      Year of make
      04.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.6 dCi ALL MODE 4x4-i (NT32)
      Power
      96 kW / 130 HP
      Year of make
      04.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi
      Power
      96 kW / 131 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi
      Power
      110 kW / 150 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi
      Power
      120 kW / 163 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi ALL MODE 4x4-i
      Power
      96 kW / 131 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi ALL MODE 4x4-i
      Power
      110 kW / 150 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 1.7 dCi ALL MODE 4x4-i
      Power
      120 kW / 163 HP
      Year of make
      04.19 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 (T32)
      Power
      104 kW / 141 HP
      Year of make
      09.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 (T32)
      Power
      106 kW / 144 HP
      Year of make
      02.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 (T32)
      Power
      108 kW / 147 HP
      Year of make
      12.13 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 ALL MODE 4x4-i (NT32)
      Power
      106 kW / 144 HP
      Year of make
      09.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 ALL MODE 4x4-i (NT32)
      Power
      108 kW / 147 HP
      Year of make
      12.13 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Flexfuel (T32)
      Power
      106 kW / 144 HP
      Year of make
      09.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Flexfuel ALL MODE 4x4-i
      Power
      106 kW / 144 HP
      Year of make
      02.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Hybrid
      Power
      132 kW / 180 HP
      Year of make
      09.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Hybrid (HT32)
      Power
      138 kW / 188 HP
      Year of make
      11.16 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Hybrid ALL MODE 4x4-i
      Power
      132 kW / 180 HP
      Year of make
      09.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 Hybrid ALL MODE 4x4-i (HNT32)
      Power
      138 kW / 188 HP
      Year of make
      11.16 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 dCi (T32)
      Power
      130 kW / 177 HP
      Year of make
      10.16 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.0 dCi ALL MODE 4x4-i (NT32)
      Power
      130 kW / 177 HP
      Year of make
      10.16 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 (T32)
      Power
      124 kW / 169 HP
      Year of make
      01.15 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 (T32)
      Power
      126 kW / 171 HP
      Year of make
      12.13 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 ALL MODE 4x4-i
      Power
      127 kW / 170 HP
      Year of make
      10.13 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 ALL MODE 4x4-i (NT32)
      Power
      124 kW / 169 HP
      Year of make
      10.14 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 ALL MODE 4x4-i (NT32)
      Power
      126 kW / 171 HP
      Year of make
      12.13 -
    • Vehicle model
      Nissan X-TRAIL III (T32_, T32R, T32RR) 2.5 Flexfuel ALL MODE 4x4-i (NT32)
      Power
      126 kW / 171 HP
      Year of make
      02.14 -
