Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 211284-40014-2

GDW Towing hitch incl. TowTec electrical set 7pins specific - VW GRAND CALIFORNIA Camper

GDW
  • GDW Towing hitch incl. TowTec electrical set 7pins specific
  • GDW Towing hitch incl. TowTec electrical set 7pins specific
Art. No.: 211284-40014-2

GDW Towing hitch incl. TowTec electrical set 7pins specific - VW GRAND CALIFORNIA Camper

  • Towbar variant: with 2-hole flange ball
  • Towing capacity: 3500 kg
  • Vertical load: 200 kg
  • Electrical set-model: Data bus
  • suitable for VW GRAND CALIFORNIA Camper
  • year of make 04.19 -
Please note the special features.
print
GDW
You save 25%
RRP € 647.00 € 483.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • only for vehicles without a waste water and / or fresh water tank in the rear area behind the bumper
Additional notes
  • If coding is possible, however, there is the option to switch the electrical set to active mode at the touch of a button and then to code it so that the assistance systems are automatically switched off during towbar operation.
  • The electrical set is delivered in passive mode. The assistance systems on the vehicle are not switched off in this case and coding is not required.
  • the towbar preparation can be recognised by a prepared plug, which is located at the rear left under the vehicle
Manufacturer towbar
GDW
Manufacturer electrical set
TowTec
Towbar type
Towing hitch
Towbar variant
with 2-hole flange ball
Electrical set-version
7pins
Electrical set type
specific
Electrical set-model
Data bus
Vehicle-specific plug connector
Yes
Towing capacity 1
3.500 kg
Vertical load 2
200 kg
D-value
20,20 kN
Certification
E6-55R-01371
Bumper alteration neccessary
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Swap system suitable
No
Weight
26,86 kg
Installation time (in hours) 3
4,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
No
Rear fog lamp disconnection
Yes
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
No
Installation only on the rear of the vehicle
No
Cable gland present in vehicle
Yes
Voltage [V]
12
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
2-Way adjustable
Hole pattern [mm]
90 x 56 mm
Hole diameter [mm]
17 mm
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

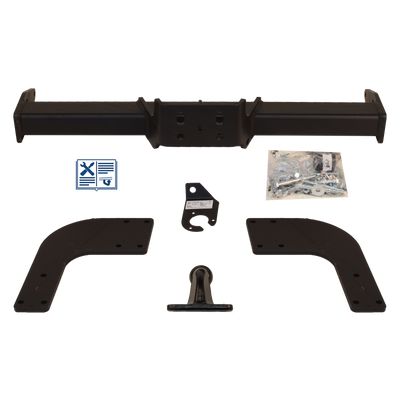

Complete towbar set with a 2-hole flange ball, including 7-pin electrical kit, for your VW GRAND CALIFORNIA Camper

Your vehicle will be optimally equipped to meet all challenges with this complete set, comprising a towing hitch by GDW and the necessary 7-pin electrical kit. The towbar and electrical kit were developed specifically for your VW GRAND CALIFORNIA Camper. You can tow trailers weighing up to 3500 kg with them.

It is not necessary to subject your VW GRAND CALIFORNIA Camper to an expert inspection or to make an entry in your vehicle documentation. The instructions of the vehicle manufacturer in your vehicle user manual must be complied with. The 2-hole flange ball could be recognized as an obstacle by car parking assistance sensors. We recommend fitting a detachable towbar in vehicles with parking assistance systems.

The complete set also includes the installation instructions for the installation on your VW GRAND CALIFORNIA Camper.
