Art. No.: 131010

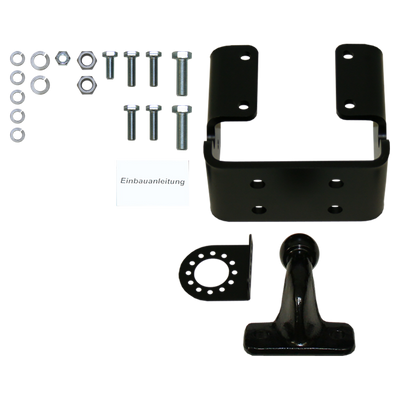

Oris Towing hitch incl. TowTec electrical set 7pins universal - VW

Oris
  • Oris Towing hitch incl. TowTec electrical set 7pins universal
  • Oris Towing hitch incl. TowTec electrical set 7pins universal
Art. No.: 131010

Oris Towing hitch incl. TowTec electrical set 7pins universal - VW

  • Towbar variant: with 2-hole flange ball
  • Towing capacity: 3000 kg
  • Vertical load: 125 kg
  • Electrical set-model: without indicator monitoring
print
Oris
10% Special offer discount
instead of € 231.98 € 208.78
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
Oris
Manufacturer electrical set
TowTec
Towbar type
Towing hitch
Towbar variant
with 2-hole flange ball
Intermediate plate for expansion to 4-hole flange 1
ZB7354
Electrical set-version
7pins
Electrical set type
universal
Electrical set-model
without indicator monitoring
Towing capacity 2
3.000 kg
Vertical load 3
125 kg
D-value
14,81 kN
Certification
e4*94/20*4309*00
Bumper alteration neccessary
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Swap system suitable
Yes
Weight
8,72 kg
Installation time (in hours) 4
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
is deconnectable with extension kit
Parctronic disconnection, essential accessories 1
171084
Rear fog lamp disconnection
with accessories
Rear fog lamp disconnection, required accessories 1
171084
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
Yes
Cable gland present in vehicle
No
Voltage [V]
12
Licence plate is covered
No
Rear fog lamp is covered
No
Height-adjustable ball head
2-Way adjustable
Hole pattern [mm]
90 mm
Hole diameter [mm]
17 mm
1 Not included.
2 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
3 the maximum vertical load depends on the vehicle manufacturer and may be lower
4 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
Product details

Complete towbar set with 2-hole flanged ball including 7-pin electrics for your vehicle The complete set, consisting of a towbar from Oris and the necessary 7-pin electrical kit, optimally prepares your vehicle for all challenges. The towbar and electrics are suitable for your vehicle. You can tow trailers up to 3000 kg.

The vehicle does not have to be presented to an expert after installation of the complete kit. There is also no need to register your vehicle in the vehicle documents . Please note the instructions of the vehicle manufacturer in your vehicle user manual. The 2-hole flange ball could be recognized as an obstacle by car parking assistance sensors. We recommend fitting a detachable towbar in vehicles with parking assistance systems.

The complete set also includes the installation instructions for the installation on your .
