Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 147493

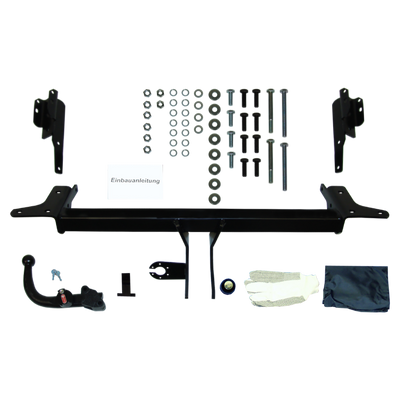

Oris Towbar detachable incl. TowTec electrical set 7pins universal - Suzuki

Oris
  • Oris Towbar detachable incl. TowTec electrical set 7pins universal
  • Oris Towbar detachable incl. TowTec electrical set 7pins universal
Art. No.: 147493

Oris Towbar detachable incl. TowTec electrical set 7pins universal - Suzuki

  • Towbar variant: Towball inserted from the rear
  • Towing capacity: 2000 kg
  • Vertical load: 85 kg
  • Electrical set-model: without indicator monitoring
Please note the special features.
print Suggest a price
Oris
You save 18%
RRP € 720.00 € 590.98
incl. 19% VAT plus shipping costs starting from € 11.31
in stock
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Special features
  • Model exclusion: X30
Manufacturer towbar
Oris
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from the rear
Electrical set-version
7pins
Electrical set type
universal
Electrical set-model
without indicator monitoring
Towing capacity 1
2.000 kg
Vertical load 2
85 kg
D-value
10,50 kN
Ball head lockable
lockable
Certification
e7*94/20*06/96*0171
Bumper alteration neccessary
Yes
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
No
Suitable for bike carrier / load carrier
Yes
Weight
26,09 kg
Installation time (in hours) 3
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
is deconnectable with extension kit
Parctronic disconnection, essential accessories 4
171084
Rear fog lamp disconnection
with accessories
Rear fog lamp disconnection, required accessories 4
171084
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
Yes
Cable gland present in vehicle
No
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
4 Not included.
Product details

Complete towbar set for your vehicle: detachable with 7-pin electrics Consisting of a detachable towbar from Oris and the necessary 7-pin electrical kit, this complete set prepares your vehicle ideally for all challenges. The trailer coupling and electrics are suitable for your vehicle. You can tow trailers up to 2000 kg. When not in use, you can simply remove the ball head and store it in the trunk.

It is not necessary to present the vehicle to an expert or to register it in the vehicle documents of your vehicle . The instructions of the vehicle manufacturer in your vehicle user manual must be complied with.

This complete set provides you with everything, from the smallest screw to the installation instructions, required to mount a towbar on your .

matching accessory for Oris Towbar detachable incl. TowTec electrical set 7pins universal (3)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.

    Ratings
    • (0)
    • (0)
    • (0)
    • (0)
    • (0)
    Rate this item!

    At this point you have the option of documenting your opinions and experiences about this product. In this way, you provide other interested parties with valuable information when making a purchase.

    There is still no rating for this product.

    Here you can share your opinion and your experience with this product to provide valuable information for other buyers

    Manufacturer information

    Safe and transparent: GPSR-compliant manufacturer information. In accordance with the new EU GPSR regulation, you will find all essential information about the manufacturer of this product here. This includes contact details that provide you with direct access to the manufacturer in case of questions or issues. It is important to us that you, as a customer, can access all relevant information at any time.

    Address
    • BoldR Group GmbH
    • Am Eichberg Flauer 1
    • 07338 Leutenberg / OT Munschwitz
    • Thuringia
    • Germany
    Address
    • ACPS Automotive Services GmbH
    • Regioparkring 1
    • 41199 Mönchengladbach
    • Nordrhein-Westfalen
    • Germany
    Please select your vehicle here for more information!

    To ensure that this product also matches your vehicle, please select the matching vehicle from the overview given below and click on "More Info". On the next page you will see all information relevant for the product with images, texts and documents.

    • Suzuki GRAND VITARA II (JT, TE, TD)
      • Vehicle model
        Power
        Year of make
        Link
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.3
        Power
        59 kW / 80 HP
        Year of make
        05.05 - 07.06
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 (JB416)
        Power
        78 kW / 106 HP
        Year of make
        10.05 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 All-wheel Drive (JB416)
        Power
        77 kW / 105 HP
        Year of make
        11.12 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 All-wheel Drive (JB416)
        Power
        78 kW / 106 HP
        Year of make
        04.05 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.6 All-wheel Drive (TA74, JB416)
        Power
        73 kW / 99 HP
        Year of make
        09.05 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.9 DDiS (JB419WD, JB419XD)
        Power
        95 kW / 129 HP
        Year of make
        03.06 - 08.08
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,...
        Power
        95 kW / 129 HP
        Year of make
        10.05 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 (JB420)
        Power
        99 kW / 135 HP
        Year of make
        01.10 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 (JB420)
        Power
        103 kW / 140 HP
        Year of make
        10.05 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 All-wheel Drive (JB420)
        Power
        95 kW / 129 HP
        Year of make
        07.07 - 02.10
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 All-wheel Drive (JB420W)
        Power
        101 kW / 137 HP
        Year of make
        03.13 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.0 All-wheel Drive (TD54V, JB420)
        Power
        103 kW / 140 HP
        Year of make
        10.05 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 (JB424)
        Power
        122 kW / 166 HP
        Year of make
        09.08 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 (JB424)
        Power
        124 kW / 169 HP
        Year of make
        09.09 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 All-wheel Drive (JB424)
        Power
        121 kW / 164 HP
        Year of make
        10.16 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 All-wheel Drive (JB424)
        Power
        124 kW / 169 HP
        Year of make
        01.09 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.4 All-wheel Drive (JT424, JB424, TDA4)
        Power
        122 kW / 166 HP
        Year of make
        01.09 -
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.7 (JB627)
        Power
        138 kW / 188 HP
        Year of make
        09.05 - 12.08
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.7 All-wheel Drive (JB627)
        Power
        138 kW / 188 HP
        Year of make
        04.05 - 08.08
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 2.7 All-wheel Drive (JB627, TD94V)
        Power
        136 kW / 185 HP
        Year of make
        01.07 - 12.08
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 3.2 All-wheel Drive (JB632, TDB4)
        Power
        165 kW / 224 HP
        Year of make
        06.08 - 02.15
        Link
        more info
      • Vehicle model
        Suzuki GRAND VITARA II (JT, TE, TD) 3.2 All-wheel Drive (TDB4, JT632, JB632)
        Power
        171 kW / 233 HP
        Year of make
        01.09 - 02.15
        Link
        more info
