Select vehicle to ensure that product fits.
Select a vehicle
Art. No.: 181360

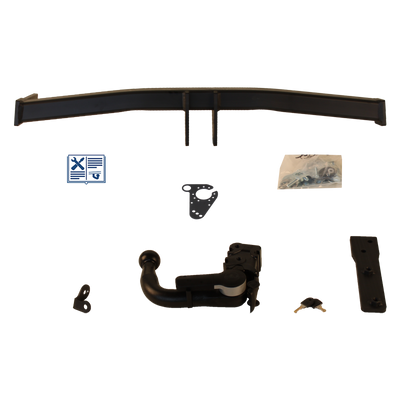

GDW Towbar detachable incl. TowTec electrical set 7pins universal - Volvo

GDW
  • GDW Towbar detachable incl. TowTec electrical set 7pins universal
  • GDW Towbar detachable incl. TowTec electrical set 7pins universal
Art. No.: 181360

GDW Towbar detachable incl. TowTec electrical set 7pins universal - Volvo

  • Towbar variant: Towball inserted from below
  • Towing capacity: 1600 kg
  • Vertical load: 80 kg
  • Electrical set-model: without indicator monitoring
print Suggest a price
GDW
You save 15%
RRP € 593.00 € 502.98
incl. 19% VAT plus shipping costs
On request
Notification when available
  • 99 % positive reviews
  • top quality
  • quick delivery
  • first rate advice
Data Sheet
Manufacturer towbar
GDW
Manufacturer electrical set
TowTec
Towbar type
detachable
Towbar lock
Automatic
Towbar variant
Towball inserted from below
Electrical set-version
7pins
Electrical set type
universal
Electrical set-model
without indicator monitoring
Towing capacity 1
1.600 kg
Vertical load 2
80 kg
D-value
9,70 kN
Ball head lockable
lockable
Certification
E6*55R*011035*00
Bumper alteration neccessary
Yes
Alteration in visible area
with visible bumper cut
Bumper replaceable / cutout can be covered
No
Bumper cover included in scope of supply
No
Socket holder can be folded in
Yes
Suitable for bike carrier / load carrier
Yes
Weight
18,89 kg
Installation time (in hours) 3
3,0 h
C2 to block light
No
Validation required
No
Parctronic disconnection
is deconnectable with extension kit
Parctronic disconnection, essential accessories 4
171084
Rear fog lamp disconnection
with accessories
Rear fog lamp disconnection, required accessories 4
171084
Integrated constant current, pole 9
No
Constant current extendable
No
Integrated charge line, pole 10
No
Charge line extendable
No
Preassembled socket
Yes
Cable gland present in vehicle
No
Voltage [V]
12
1 the maximum towing capacity depends on the total weight of the vehicle and can therefore be lower
2 the maximum vertical load depends on the vehicle manufacturer and may be lower
3 The indicated fitting times for towbars and wiring kits are related to the regular installation of these products. Some car models might require additional work like disassembling the bumper.
4 Not included.
Product details

Complete detachable towbar set with 7-pin electrics for your vehicle The complete set, consisting of a detachable towbar from GDW and the necessary 7-pin electrical kit, prepares your vehicle optimally for all challenges. The trailer coupling and electrics are suitable for your vehicle. You can tow trailers up to 1600 kg. When not in use, you can simply remove the ball head and store it in the trunk.

Neither the presentation of your vehicle to an expert nor registration in the vehicle documents is required. The instructions in your vehicle user manual, issued by the vehicle manufacturer, must be complied with.

This complete set provides you with everything, from the smallest screw to the installation instructions, required to mount a towbar on your .

matching accessory for GDW Towbar detachable incl. TowTec electrical set 7pins universal (3)
    Installation instructions

    Installation instructions are given here in different languages and, depending upon the product, complementary installation help and additional images which make the installation or attachment of the product easier for you.
